Product Center
Network Security Motherboard

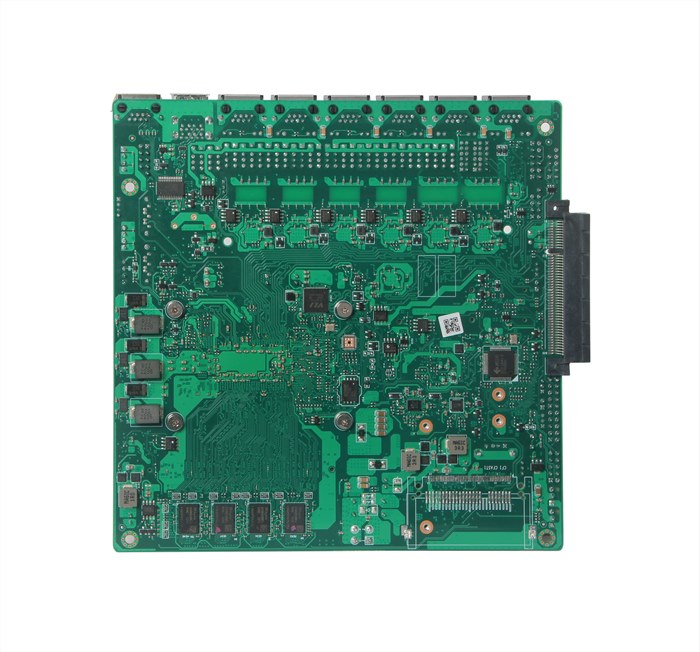

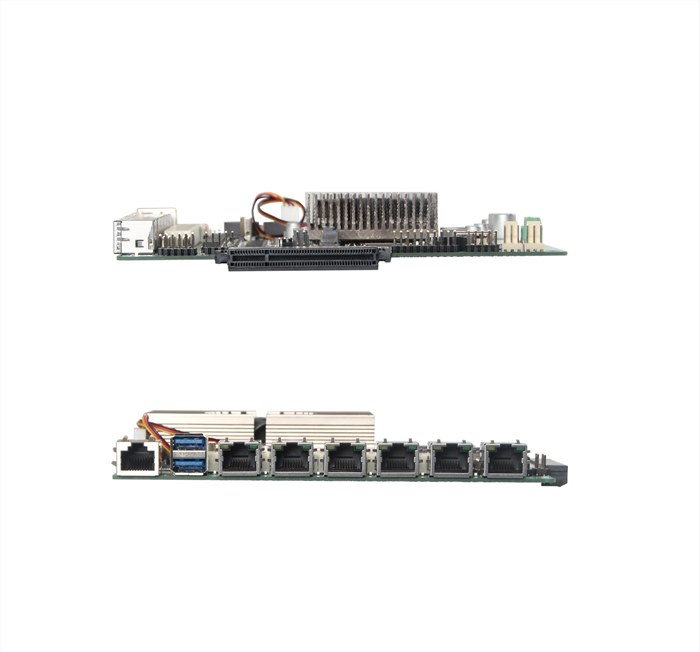

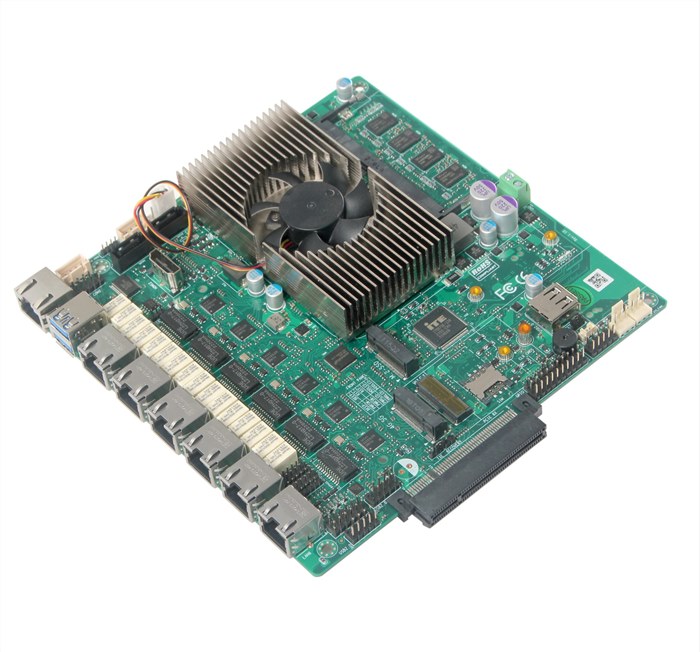

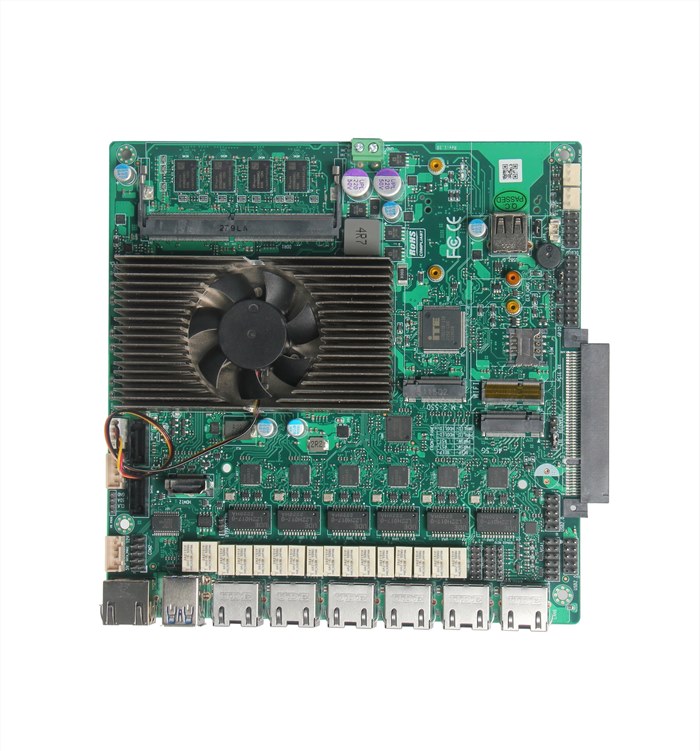

TOP50B6L

项目介绍:

◆ Onboard Intel 11th Gen Tiger Lake-U series processor

◆ Onboard Ram,1*DDR4 SO-DIMM,max support 48GB

◆ 6*Intel 2.5G lan port,ByPASS

◆ M.2 Key-M,Key-E,Key-B

◆ PCIe_8X Extended 10 Gigabit Optical Port,TPM2.0,DC 9-36V

◆ Size:170x170mm


事宜人群:

CPU

Onboard Intel 11th Tiger Lake-U series processor

Ram

1*DDR4 SO-DIMM Ram socket;Onboard Ram,Max 16GB,Toal max support 48GB

Display

1*HDMI2.0 pin header

1*VGA pin header

Storage

1*M.2 Key-M 2280,NVMe(PCIe4.0_4X)protocol

1*CF card,3.3V/5V Power supply options

2 SATA3.0, SATA1 and CF card to choose one. Default SATA2 + CF card

I/O port

6*RJ45,Intel i225V 2.5G Network,LAN1/2/3/4 with ByPASS

2*USB3.1

1*RS232(RJ45 port)

Expansion port

1*PCIe_8X(PCIe3.0_X4)

1*M.2 Key-E socket,Support PCIe_X1 and USB2.0 protocol,WIFI/BT device(2230)

1*M.2 Key-B socket,Support USB2.0 and USB3.0 protocol,3G/4G/5G device

TPM2.0

F_Panel,2x5Pin,space 2.54mm

2 set(4*)USB2.0 pin header,2x5Pin,space 2.54mm

1*RS232 pin header,2x5Pin,Space 2.54mm

8bit GPIO pin header,2x5Pin,space 2.54mm

AT/ATX power-on selection

1 4Pin CPU smart fan, 2 3Pin system fans

Power supply

DC 9-36V,90W,copper fan radiator

Environment



Working temperature:-20℃ ~ +60℃;Working humidity:0% ~ 90% (non-condensing)

Storage temperature:-40℃ ~ +85℃;Storage humidity:0% ~ 90% (non-condensing)

System support

Windows10,Windows11,Linux

Size

170x170mm

Weight

Without radiator 260g; with radiator 350g


文件格式:
文件大小:
Update date: 2024 - 10 - 30
