Product Center

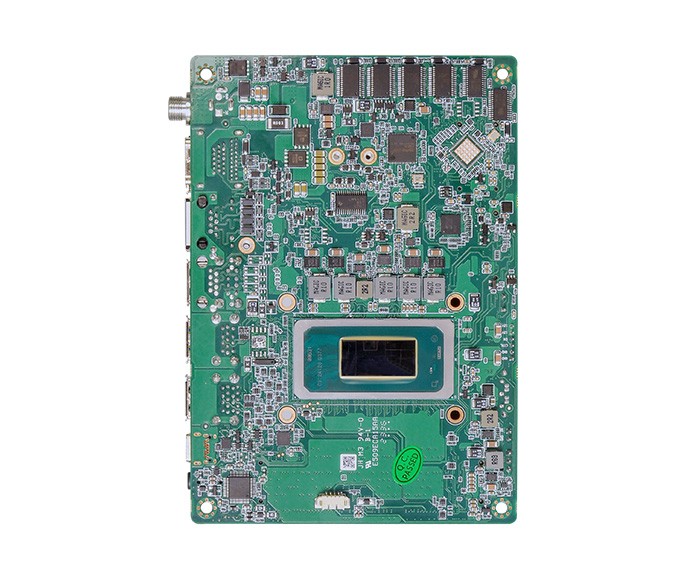

3.5inch motherboard

UT1003AW

项目介绍:

◆Intel core Ultra-U/H series processor

◆2 DDR5 SO-DIMM, total maximum 96GB

◆TPM2.0 optional, 1TYPE-C (support DP), 1DP, 1HDMI, 1EDP/LVDS two optional

◆2LAN/6COM/8USB/8GPIO/3M.2(SSD/WIFI/4G/5G)

◆DC9-36V wide voltage

◆146x102mm


事宜人群:

Processor



Intel core Ultra-U/H series processor (U-15W, H-28W)

EFI BIOS

Memory

2 DDR5 SO-DIMM memory slots up to 96GB

Display

1 HDMI1.4; 1 24-bit LVDS (LVDS/EDP Either way); 1 MiniDP1.4;USB TYPE-C 4K

Memory



1 M.2 KEY-M 2280 (PCIe_X4 NVMe)

1x 7Pin SATA3.0, SATA Power 5V 2Pin

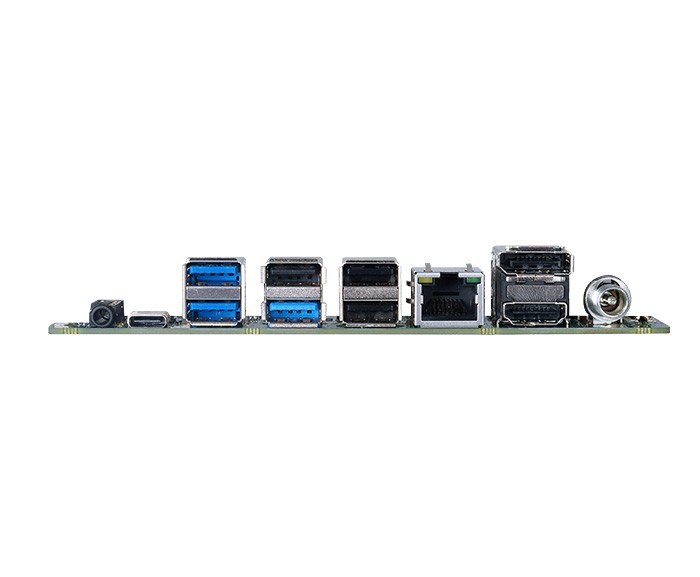

Board Side I/O Interface

1 DC port, 1 MiniDP2.1, 1 HDMI2.1, 4 USB3, 2 RJ45 ports (1 i226-LM, supports AMT) / one of the optional 2 USB2, 1 2-in-1 audio,USB TYPE-C 4K

Expansion Interfaces/Functions























1 TPM2.0 (chip optional, default not with)

1 M.2 KEY-B (PCIe+USB3.0, 4G/5G module), 1 SIM card slot

1 M.2 KEY-E (PCIE_X1, WIFI module)

1 CAN port 2x3PIN, pitch 2.0

6 COM, 2x5Pin, 2.0 pitch (of which COM1 and COM2 are optional RS232/RS485/RS422, the other 4 RS232)

1 SPK 1x4 spacing 1.25

1 CL_CMOS 1x2Pin Pitch 2.0

2 x USB2.0 Pin, 2x5Pin, Pitch 2.0

1 CPU Smart FAN, 4Pin; 1 System Fan, 3Pin Pitch 2.54

1 F_Panel, 2x5Pin, 2.0mm pitch

1 x 8-bit GPIO Pin, 2x5Pin, 2.0 pitch

1x AT/ATX 1x2Pin spacing 2.0

Power Supply

DC9-36V wide voltage

Operating Environment



Operating Temperature:-20℃ ~ +60℃; Operating Humidity:0% ~ 90% relative humidity, no condensation

Storage Temperature:-40℃ ~ +85℃; Storage Humidity:0% ~ 90% RH, no condensation

Operating System Support

Windows 10, Windows 11, Linux

Dimensions

146x102mm

Weight

160g without heat sink;


文件格式:
文件大小:
Update date: 2024 - 10 - 28
