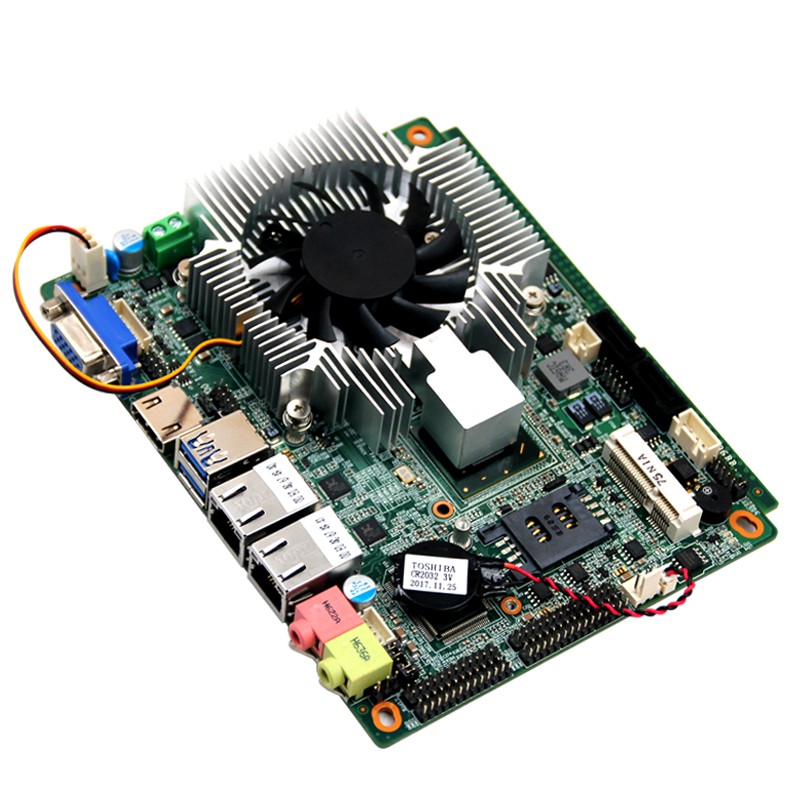

Z-3.5 motherboard

HM77-3

项目介绍:

◆ Based on Intel QM77/HM77 chipest, support Intel Socket G3 Mobile Sandy/Ivy Bridge i7/i5/i3

◆ 1*DDRⅢ 800/1066/13333 SODIMM socket. maximum up to 8GB

◆ Support HDMI,LVDS and VGA display ;

◆ 2*RTL8111E PCI-E Gigabit Ethernet LAN  1xMini PCIe support Wifi and 3G Module

◆ 2x SATAII /2xUSB3.0/6x USB2.0 /6x COM /1x Mini

  SATA（support SSD）/1x LPT
事宜人群:


Processor

CPU

Onboard CPU,support Intel Mobile sandy/ivy bridge i3/i5/i7&Celeron 1037U processors(optional).

CPU Package

RPGA988

Chipset

Intel® HM77/QM77 Express Chipset Optional.

BIOS

UEFI BIOS

Ram

Technical architecture

DDR3 memory,1066/1333/1600MHz.

Capacity

SO-DIMM socket,maximum up to 8GB



Video

Graphic controller

Intel HD Graphics 3000/4000 (CPU Integrated )

Dual LVDS

Support dual channel 24bit LVDS connector

HDMI

Resolution maximum:1920*1200

Double display support

LVDS+VGA,LVDS+HDMI,HDMI+VGA,Synchronous or asynchronous display

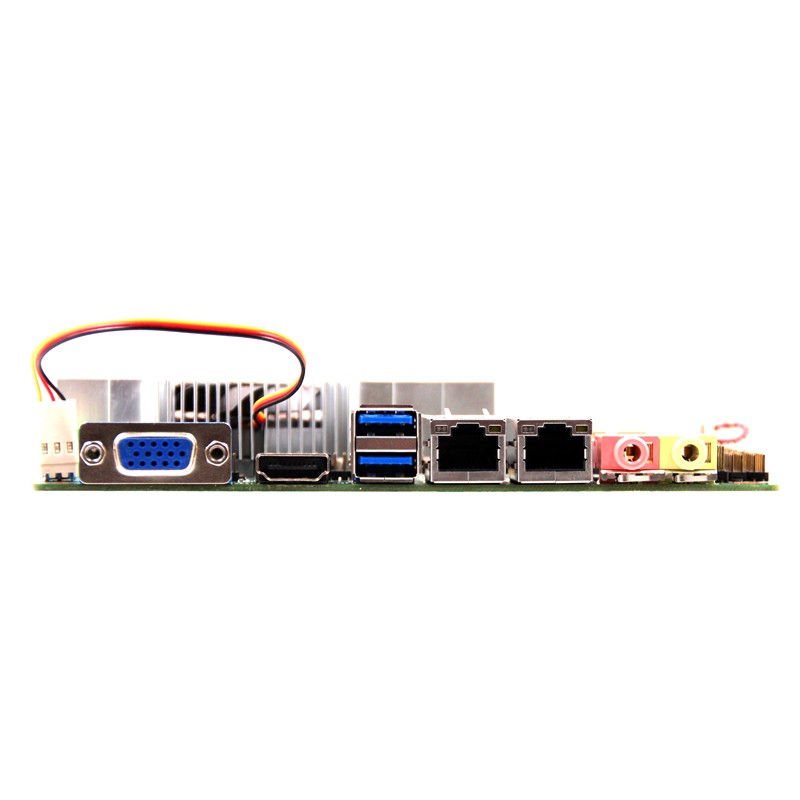

Rear Panel I/O

Ports

1*HDMI 1*VGA port 2*Lan 2*USB 3.0 port 1*Audio I/O interfaces (Line_out,Mic_in)

Network

Controller

Onboard 2*Gigabit Ethernet,support PXE and Wakeup on LAN.

Audio

Controller

Onboard HDA ALC662,provide MIC-IN/LINE-OUT and expansion header.

Super  I/O

Controller

NCT6106D

Hardware Monitor

Watchdog-Timer

0~255 timer

Cooler

Aluminum heat sink(fan)



Input/Output interfaces

USB

8*USB(2*USB 3.0 port 6*USB 2.0 expansion header),Max. supported 5V/1A

Serial port

6*COM expansion headers (support 5* RS232/1*422/485)

PS/2


GPIO

8*GPIO expansion header(8 bit),3.3V@24mA electrical level

Expansion Sockets

Mini-PCle

1*Mini-PCIE socket for WIFI/3G

SMBUS


Storage

SATA

2*SATA socket

M-SATA

1*Mini SATA socket for SSD

Power supply

Power Type

Single input DC power supply,12V-DC,+/-5%

Power Consumption

20W



Working environment

Working Temperature

-20°C~+60°C(-4°F~140°F)

Storage Temperature

-40°C~+85°C(-40°F~185°F)

Operating Humidity

0%~90% (non-condensing)

Storage Humidity

0%~90% (non-condensing)

Dimensions

Size

115*155MM

Weight

0.5KG

Certifications


CE,RoHS,FCC
HM77-3(2016)
