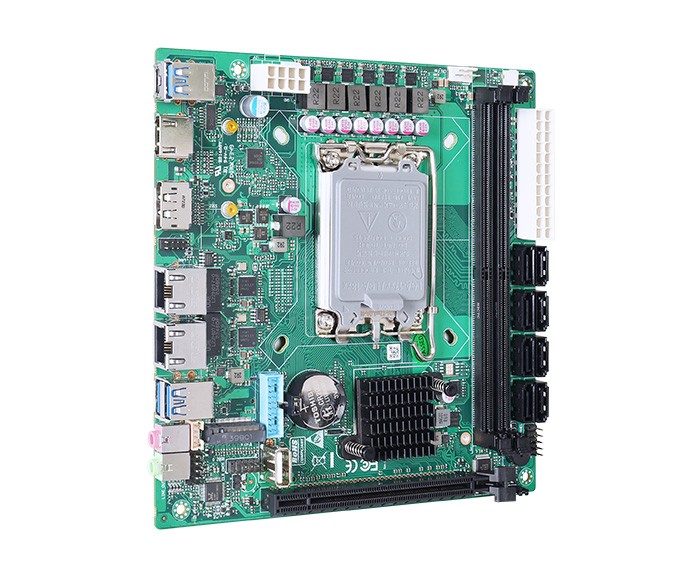

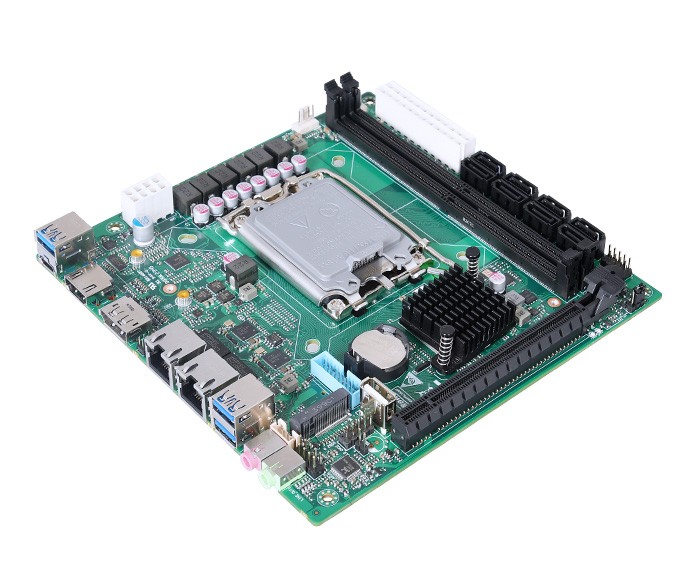

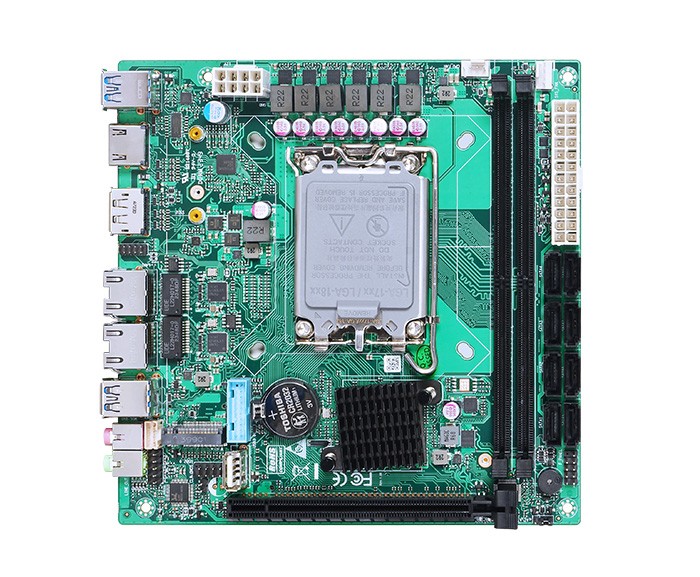

u Intel 12th Gen Alder Lake-S series/13th Gen Raptor Lake-s series, LGA1700, TDP 65W; H670/B660
u 2*DDR5 SO-DIMM, up to 64GB
u 2*Intel i226-V Networking, HDMI+DP
u 3*M-Key 2280, PCIe_X16 (PCIe5.0 16x)
u Power Supply: ATX 24+8 Pin Size:170x170 mm
Processor System
Intel 12th Generation Alder Lake-Series/13th Generation Raptor Lake-Series, LGA1700, TDP 65W
EFI BIOS
Memory
2*DDR5 SO-DIMM 64GB max (12th Gen, 4800MHz max; 13th Gen, 5600MHz max)
Storage
3*M.2 M-Key 2280 (PCIe5.0_4x protocol on front, PCIe4.0_4x protocol on back)
8*SATA3.0 ports, RAID 0/1/5/10 (8*SATA3.0 for H670; 4*SATA3.0 for B660)
Display
1*HDMI2.0 interface, support 4K@60Hz
1*DP1.4 interface, support 4K@60Hz

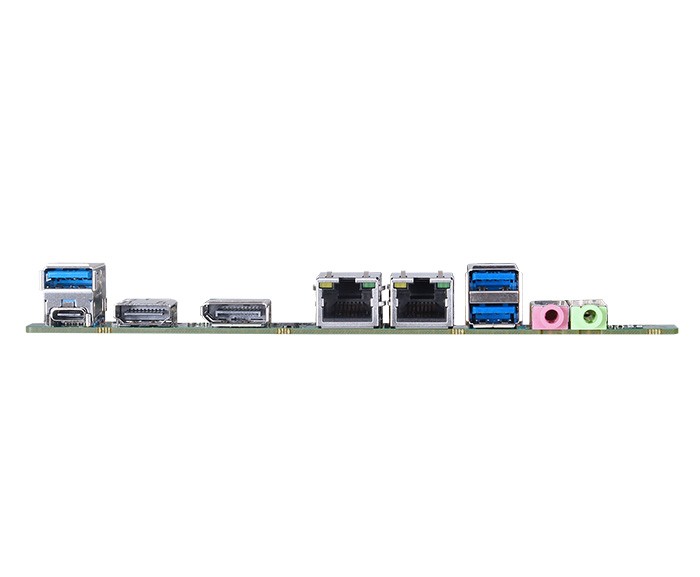

Board Side I/O Interface
3*USB3.0,1*Type-C(20Gbps)
HDMI, DP, 2*LAN
Line out, Mic in
Expansion Interfaces/Features
TPM2.0 optional, not available by default
1*PCIe_X16(PCIe4.0_16x protocol)
1 set of 2 USB3.0 pins with 2.0mm pitch
1 set of 2 USB2.0 pins, 2.54mm pitch; 1 built-in vertical USB2.0
LAN LED pins with 2.54mm spacing
1*4Pin PWM CPU fan, 1*4Pin system fan
1*F_Audio, 1*SPEAK
Power Supply
ATX 24+8 Pin, 200W or above (depending on actual usage environment)
Operating Environment
Operating Temperature: -20℃ ~ +60℃; Operating Humidity: 5% ~ 90
Storage temperature: -40℃ ~ +85℃; Storage humidity: 5% ~ 90%
Operating System Support
Windows 10, Windows 11, Linux
Dimensions
170x170 mm
Weight
Approx. 400g
