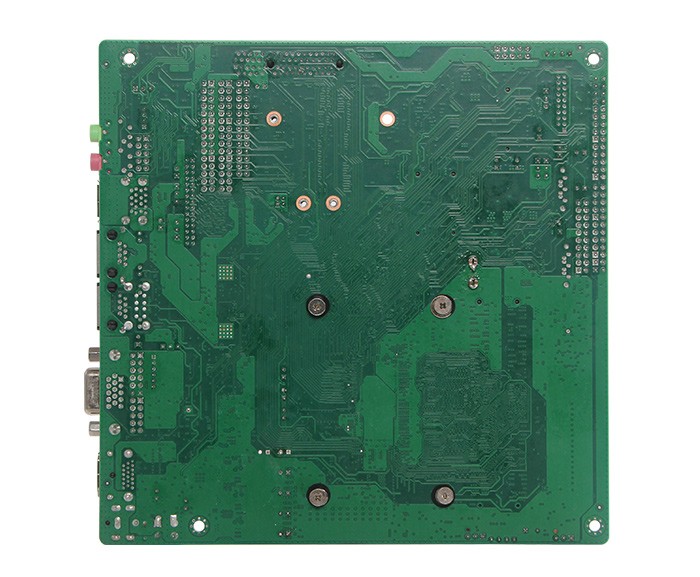

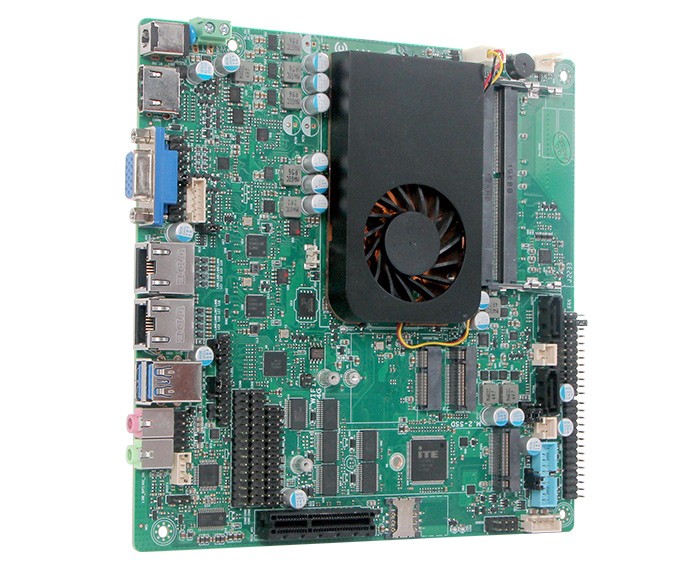

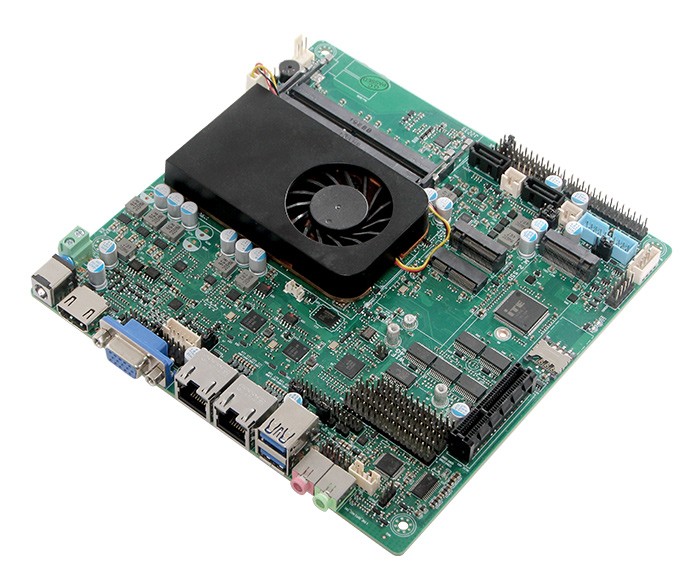

Mini itx motherboard

TOP500B

项目介绍:

◆ Onboard Intel 11th generation Tiger Lake-U series processors

◆ 2 DDR4 SODIMMs, up to 64GB

◆ TPM2.0

◆ 1 HDMI2.0, 1 VGA, 1 LVDS/eDP (choose one of two)

◆ 1 PCIe_X4 interface, PCIe3.0_X2

◆ 2 Intel i225 2.5G network cards (single and dual network optional)

◆ 6 COM; 1 Key-E


事宜人群:

processor system



Onboard Intel 11th Gen Tiger Lake-U series processors

EFI BIOS

Memory

2 DDR4 2666MHz SO-DIMM dual channel, maximum support 64GB

Display



1 VGA, 2048x1536; 1 HDMI2.0, 4096x2304@60Hz

24-bit dual-channel LVDS, 1920x1200; eDP, 4096x2304@60Hz (either LVDS or eDP)

storage

2 SATA3.0, 2 2Pin SATA power supplies, 1 4Pin SATA power supply

1 M.2 2280 interface, the default PCIe3.0_2X protocol (select one of SATA2 and SATA protocol)

Onboard SSD, optional 32GB/64GB/128GB (choose one with SATA1, no default)

Remarks: Default M.2 NVMe protocol + 2 SATA3.0

I/O interface

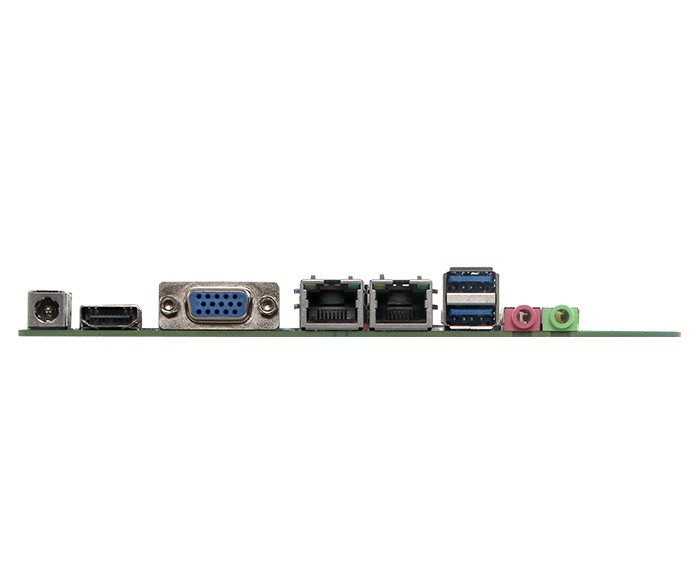

1 DC JACK, 1 VGA, 1 HDMI, 2 LAN, 2 USB3.1, 1 Line out, 1 MIC

extensions

TPM2.0, optional

2 Intel I225 2.5G network cards (single and dual network optional)

1 PCIe_4X interface, PCIe3.0_X4 protocol

1 Key-E, M.2 2230 WIFI module

1 Key-B, M.2 4G/5G module, SIM card

4 RS232, 2 RS232/485  RS232/RS485/RS422

2 groups of 4 USB2.0, 1 group of 2 USB3.0

LPT pin, 2x13Pin, pitch 2.54mm

Built-in VGA pin, 2x5Pin, pitch 2.54

Aluminum fan radiator (supports automatic and manual fan speed adjustment)

1 PS/2 pin interface, 2x4Pin, pitch 2.54mm

8-bit GPIO, 2x5Pin, pitch 2.54mm, routine provided

0-255 seconds watchdog, provide watchdog routine

power supply

DC12-19V, 90W

working environment



Working temperature: -20℃ ~ +60℃; Working humidity: 0% ~ 90% relative humidity, no condensation

Storage temperature: -40℃ ~ +85℃; Storage humidity: 0% ~ 90% relative humidity, non-condensing

operating system

Windows11, Windows10, Linux

size

170x170mm

weight

228g(without heat sink)

processor system



Onboard Intel 11th Gen Tiger Lake-U series processors

EFI BIOS

Memory

2 DDR4 2666MHz SO-DIMM dual channel, maximum support 64GB

Display



1 VGA, 2048x1536; 1 HDMI2.0, 4096x2304@60Hz

24-bit dual-channel LVDS, 1920x1200; eDP, 4096x2304@60Hz (either LVDS or eDP)

storage

2 SATA3.0, 2 2Pin SATA power supplies, 1 4Pin SATA power supply

1 M.2 2280 interface, the default PCIe3.0_2X protocol (select one of SATA2 and SATA protocol)

Onboard SSD, optional 32GB/64GB/128GB (choose one with SATA1, no default)

Remarks: Default M.2 NVMe protocol + 2 SATA3.0

I/O interface

1 DC JACK, 1 VGA, 1 HDMI, 2 LAN, 2 USB3.1, 1 Line out, 1 MIC

extensions

TPM2.0, optional

2 Intel I225 2.5G network cards (single and dual network optional)

1 PCIe_4X interface, PCIe3.0_X4 protocol

1 Key-E, M.2 2230 WIFI module

1 Key-B, M.2 4G/5G module, SIM card

4 RS232, 2 RS232/485  RS232/RS485/RS422

2 groups of 4 USB2.0, 1 group of 2 USB3.0

LPT pin, 2x13Pin, pitch 2.54mm

Built-in VGA pin, 2x5Pin, pitch 2.54

Aluminum fan radiator (supports automatic and manual fan speed adjustment)

1 PS/2 pin interface, 2x4Pin, pitch 2.54mm

8-bit GPIO, 2x5Pin, pitch 2.54mm, routine provided

0-255 seconds watchdog, provide watchdog routine

power supply

DC12-19V, 90W

working environment



Working temperature: -20℃ ~ +60℃; Working humidity: 0% ~ 90% relative humidity, no condensation

Storage temperature: -40℃ ~ +85℃; Storage humidity: 0% ~ 90% relative humidity, non-condensing

operating system

Windows11, Windows10, Linux

size

170x170mm

weight

228g(without heat sink)


文件格式:
文件大小:
Update date: 2023 - 03 - 08
