Processor | Onboard Intel 7th Kaby Lake R-U series processor |
EFI BIOS |
Ram | 2*DDR4 SODIMM，Max support 32GB |
Storage | 2*SATA3.0 port + SATA power 2pin 5V |
1*mSATA port |
Display | 1*HDMI2.0 port，Support 4096x2160@60HZ |
Support dual-channel 24-bit LVDS output, the highest resolution is 1920x1200, the highest EDP resolution supports 4096x2304, LVDS/eDP can choose one) |
VGA support max resolution 2048x1536 |
Support LVDS/EDP+VGA+HDMI three-screen synchronous or asynchronous display |

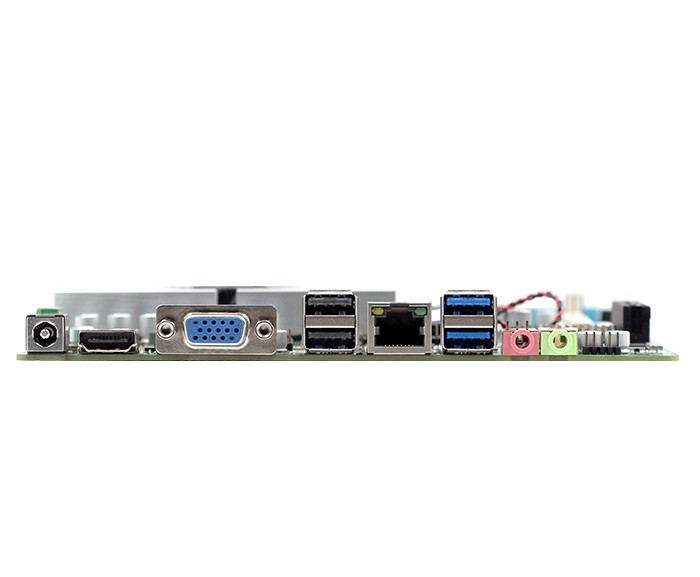

I/O Interface | 1*DC Jack power interface; optional 2Pin Phoenix terminal and TAX 4Pin terminal |
1*HDMI display port |
1*VGA port；JVGA pin header，2x5Pin，space 2.54mm |
2*RJ45 I226 2.5G lan port；1lan/2lan optional |
2*USB3.0 port；2 USB3.0+2 USB2.0 in single network |
2*single-hole audio input and output interfaces |
expansion interface/function | TPM2.0 optional |
1*PCIe_4X |
24 bit LVDS，2x15Pin，space 2.0mm |
1*MiniPCIe socket，Supports PCIe and USB2.0 protocols (when USB89 pin headers are available, only PCIe protocol is supported) |
1*MiniPCIe socket，support PCIe protocols |
6COM；4*RS232， 2*RS422/485 optional，（Selectable as 6 RS232 or 1 RS485/RS422, 5 RS232），space 2.54mm |
1*PS/2 pin header，2x4Pin，2.54mm |
2*USB3.0 pin header，space 2.0mm；4*USB2.0 pin header，space 2.54mm |
8 bit GPIO，LPT pin header，PS/2 pin header，SPDIF pin header，space2.54mm |
Power supply | DC12V，60W or above |
Working Environment | Working temperature: -20℃ ~ +60℃; Working humidity: 0% ~ 90% relative humidity, no condensation |
Storage temperature: -40℃ ~ +85℃; Storage humidity: 0% ~ 90% relative humidity, non-condensing |
System | Windows10，Windows11，Linux |
Size | 170x170mm |
Weight | 350g With radiator，250g Without radiator |
