Product Center
Embedded industrial pc

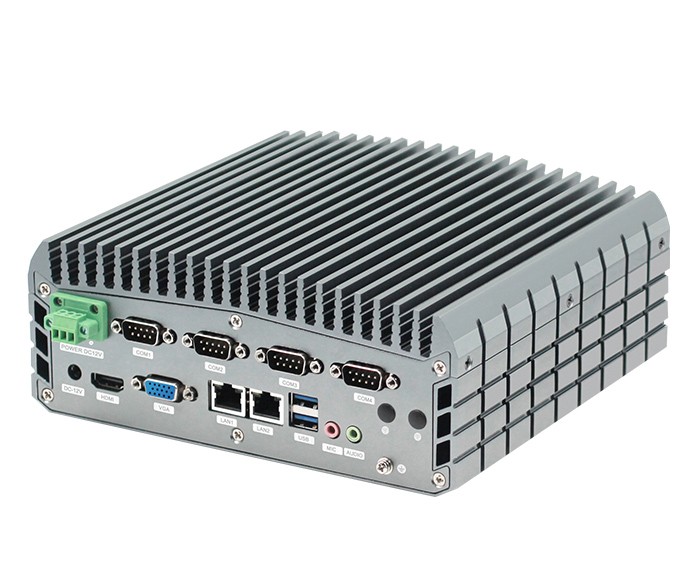

Q-BOX-S3

项目介绍:

◆Adopt Intel 8th Whiskey Lake-U Celeron,Core i3/i5/i7 processor；

◆ 2 *DDR4 SODIMM 260 Socket；

◆ Provide 1*VGA,1*HDMI 1.4（Support 4K display output）；

◆ 4*RS-232, 2*RS422/485 optional，Support automatic flow direction control（6*RS232 or 1*RS485 / RS422, 5*RS232 optional）

◆ Support auto power on function, jumper selection；

◆ Single Input DC Power Supply，DC12V；

◆ size 236*185*85mm ；
事宜人群:

Model

Q-BOX-S3

size

236*185*85mm

Processor

Integrated Intel 8th Whiskey Lake-U Celeron,Core i3/i5/i7 processor

Chipset

Intel® Whiskey Lake-U serial SOC

Ram socket

2 *DDR4 SODIMM 260 Socket

Lan Port

Onboard 2*Intel I211/I210 Gigabit LAN

Audio

Onboard HDA ALC662

Storage

1*SATA3.0 1*MSATA

Color

Silver

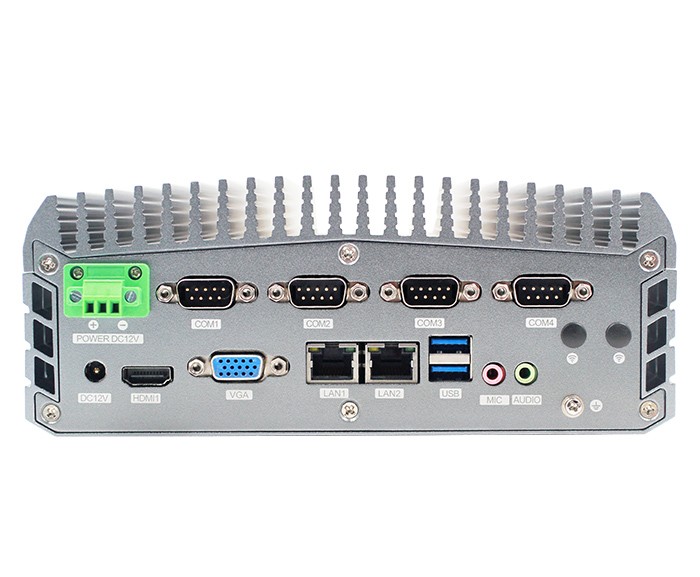

Rear panel interface

2*LAN  1*HDMI  1*VGA  4*COM  1*DC  1*MIC-IN  1*LINE-OUT 2*USB3.0  2*WIFI Antenna interface 1*Ground Interface

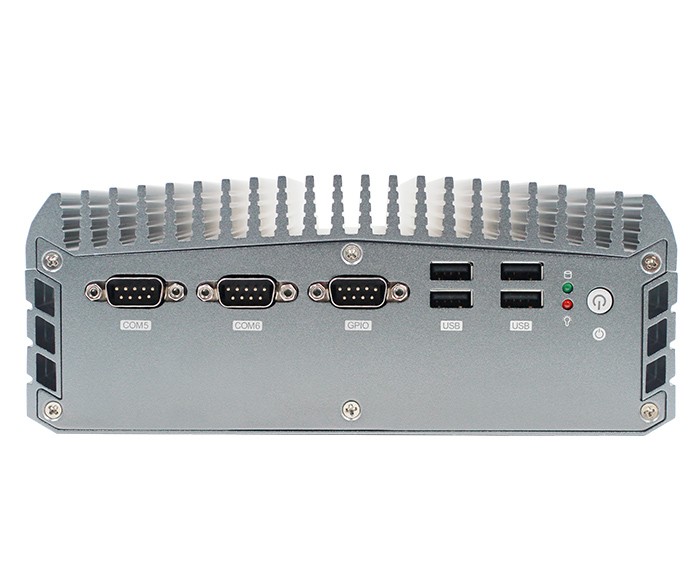

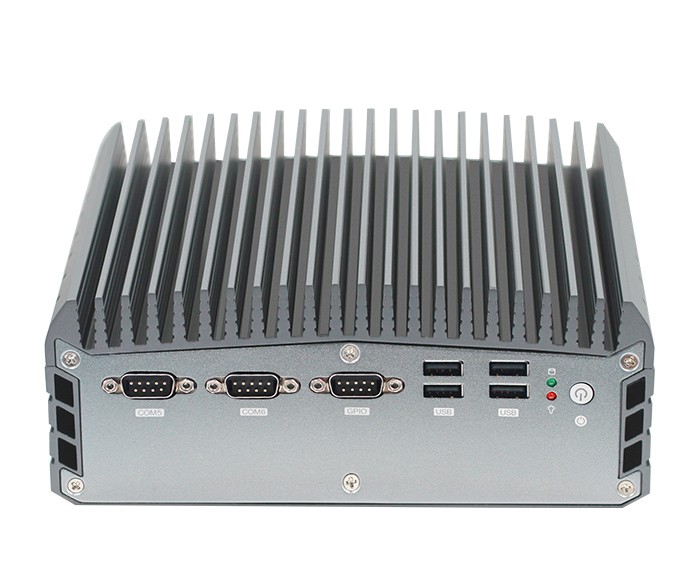

Front panel interface

2*COM 1*GPIO 4*USB2.0 1*power switch 1*Hard drive indicator 1*Power Indicator
Q-BOX-S3 datasheet
文件格式:
文件大小:
Update date: 2020 - 10 - 20
Download now
