Product Center
Embedded industrial pc

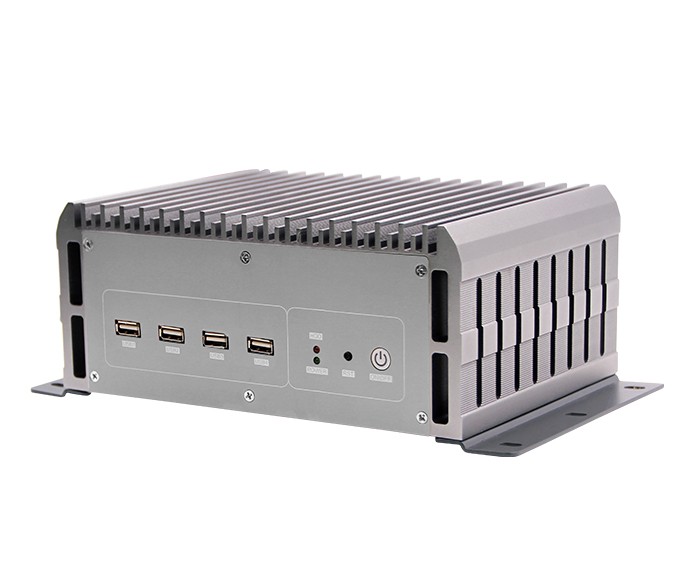

Q-BOX-H1

项目介绍:

◆ support Intel Mobile 4th Haswell-M i3-i5-i7 CPU

◆ QM87/HM86/HM87 High speed chipset

◆ Provide 1*VGA,1*HDMI，1*DP，2*USB3.0，4*USB2.0 5*RS232，1*RS/422/RS485

◆ Support power-on automatic boot function, jumper selection

◆ support wide voltage 8-36V；

◆ Dimension:273.4*160*99.2mm ；
事宜人群:

Model number

Q-BOX-H1

Size

273.4*160*99.2mm

Processor

Support Intel Mobile 4th Haswell-M i3-i5-i7 CPU

Chipset

QM87/HM86/HM87 high speed chipset

Memory socket

Onboard 2GB/4GB DDR3L ram, can add one memory slot, max can be 12GB

Network

Onboard 2*Intel I211 Gigabit Ethernet

Vedio

Onboard HDA ALC662

Storage

1*SATA3.0 1*SATA_HDD AA1*Mini-SATA

Color

Sliver

 Front I/O interface

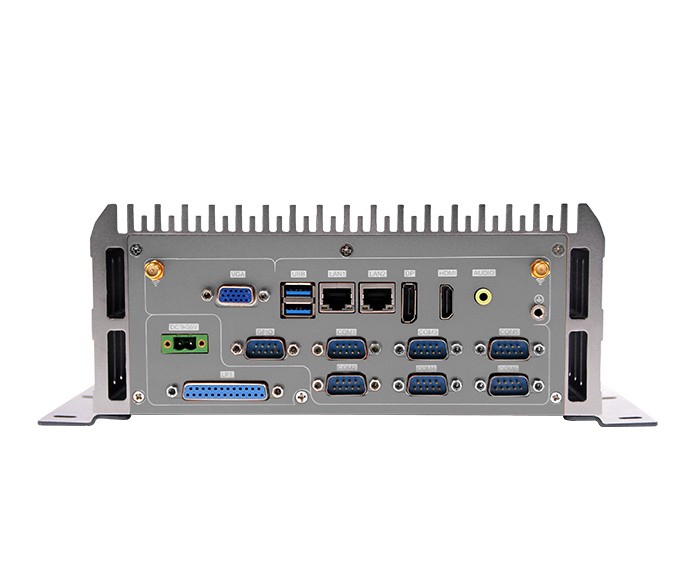

2*LAN  1*HDMI  1*VGA 1*DP  1*DC  5*RS232 1*RS422/RS485 1*LPT  1*DC 1*LINE-OUT 2*USB3.0 2*WIFI Antenna interface

Bear I/O interface

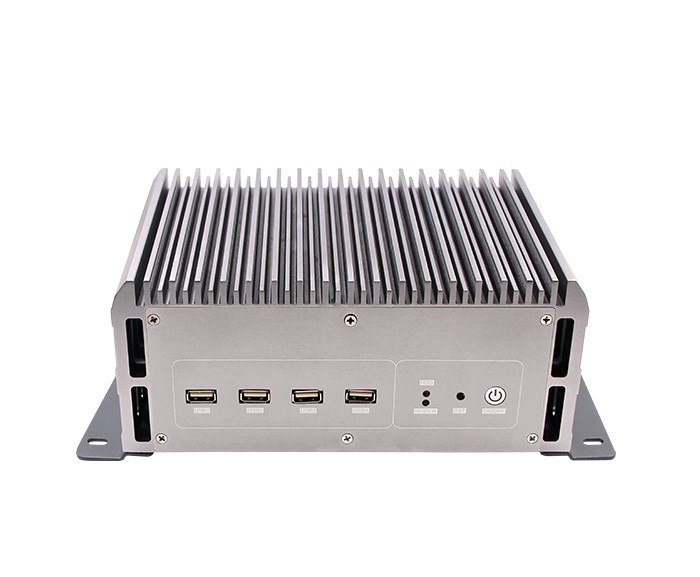

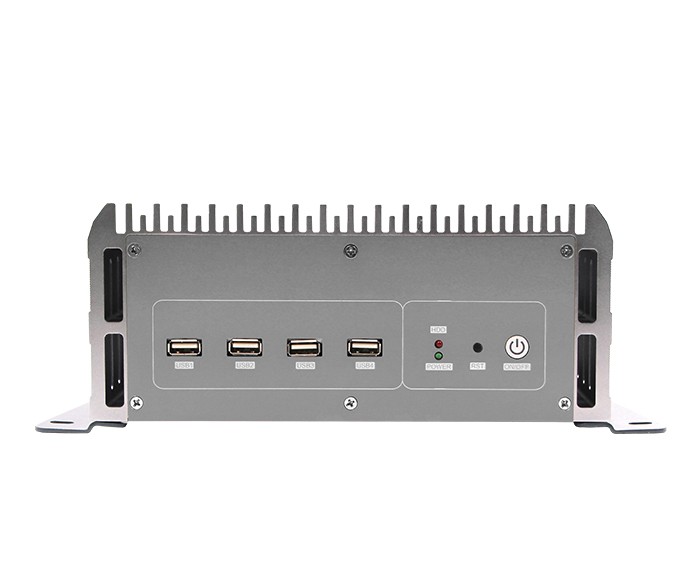

4*USB2.0, 1*power light 1*hard disk light 1* reset button 1* Switch button with indicator light

OS

Win7 Win10 Linux

Standard Equipment

1*12V 5A adapter 1* power cable 1*CD

Package

Neutral packaging, carton size Net weight 2.85kg
Q-BOX-H1 datasheet
文件格式:
文件大小:
Update date: 2020 - 04 - 15
Download now
