Product Center
Embedded industrial pc

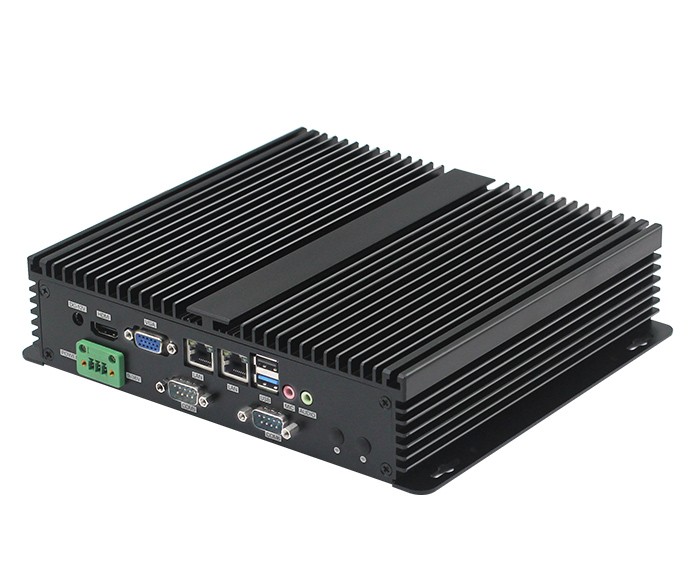

Q-BOX-M（TOP90C）

项目介绍:

◆ Integrated Intel 5th Mobile Broadwell-U single CPU；

◆ onboard 2GB/4GB DDR3L Ram；

◆ Providing 1*VGA,1*HDMI 1.4（support 4k display out put ）；

◆ 4*RS-232, 2*RS422/485（6*RS232 for optional）；

◆Support power-on automatic power-on function, jumper selection;

◆ Single input DC power supply, DC12V (optional widened voltage module, can support 9-36V input)；

◆ size:235*200*56.5mm ；
事宜人群:

Model

Q-BOX-M

size

235*200*56.5mm

Processor

Onboard Intel 5th Mobile Intel Broadwell-U single chipset CPU(i3-5010/i5-5200u/i7-5500u)

Chipset

Broadwell-U single chipset CPU

Memory

Onboard 2GB/4GB DDR3L Ram, max to be 12GB Ram

Expansion socket

1 DDR3 SODIMM 204 Socket

Lan

Onboard 2 Gigabit LAN

Audio

Onboard  HDA ALC662

Storage equipment

1*MINISATA support SSD; 2*SATA 1*SATA_HDD

Black

Black

Front panel interface

4*COM（COM1 and COM2 RS422/RS485 and RS232 for optional）

4*USB

1*Switch button with indicator light

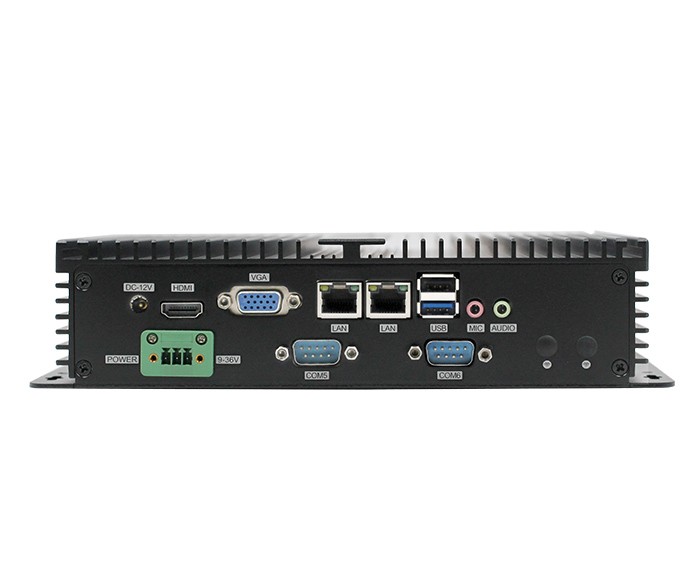

Backplane interface

1*VGA

1*HDMI

2*USB3.0

2*LAN

1*line out

1*mic in 2*COM(RS232)

1*DC

1* Phoenix terminal

3PIN power connector

 accessories

1*12V 5APower supply

1*WIFI Antenna （optional accessories）

Package
Q-BOX-M(TOP90C 2lan)datasheet
文件格式:
文件大小:
Update date: 2020 - 10 - 20
Download now
