Product Center
Embedded industrial pc

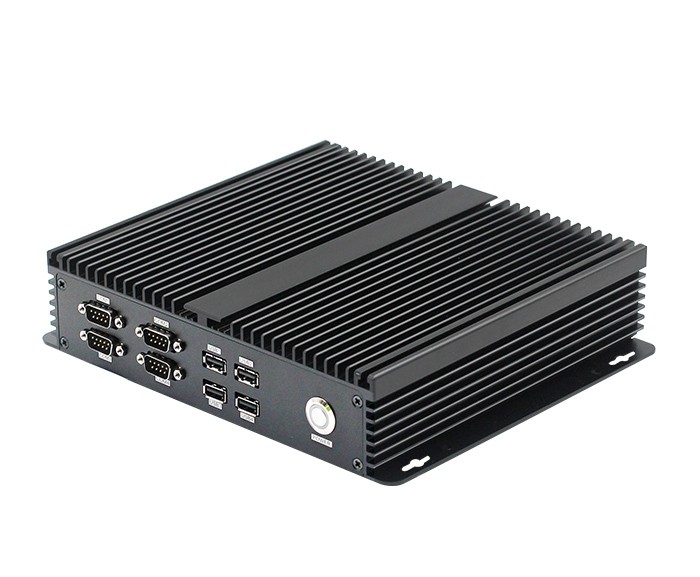

Q-BOX-M(TOP77）

项目介绍:

◆ Onboard CPU，support Intel Mobile 2nd、3rd  i3-i5-i7 processor for Optional

◆ 1*DDR3 SODIMM 204 Socket，Max up to be 8GB DDR3，1066/1333/1600MHz。

◆Onboard 1*Gigabit Ethernet

◆ 4*RS232，2*RS422/485；

◆ Support power-on automatic startup function, jumper selection；

◆ Single input DC power supply DC12V ( wide voltage power supply support 9-36V input Optional)

◆ Size:235*200*56.5mm ；
事宜人群:

Model No.

Q-BOX-M

Measure

235*200*56.5mm

Processor

Onboard CPU，support Intel Mobile 2nd、3rd  i3-i5-i7 processor for Optional

Chip

 HM77/QM77

RAM

Onboard 2GB/4GB DDR3 RAM, Max. Expanded 8Gb

Expansion slot

1  DDR3 SODIMM 204 Socket

Network

Onboard 1*Gigabit Ethernet

Audio

Onboard  HDA ALC662

Storage

1*MINISATA SUPPORT SSD; 4*SATA

Chassis Color

Black

Front panel I/O

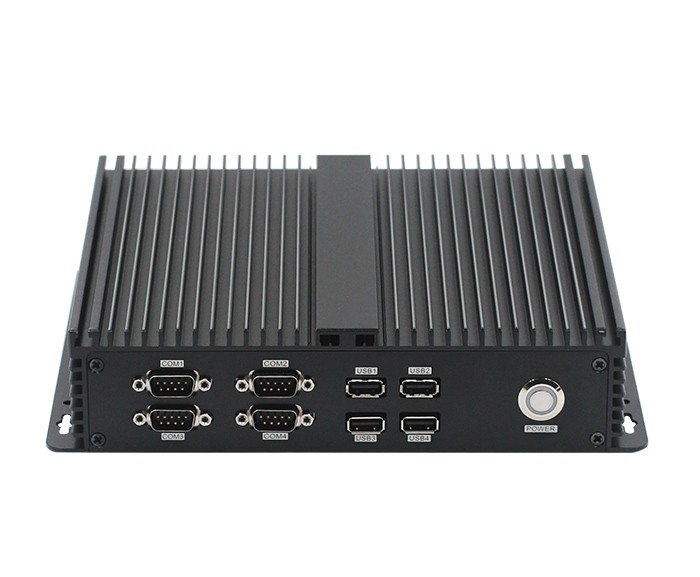

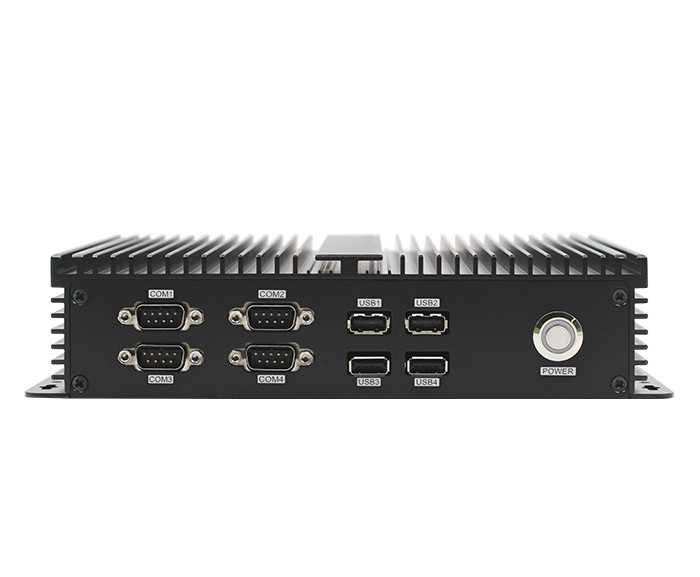

4*COM（COM3 AND COM4 IS RS422/RS485）4*USB 1*POW-ON/OFF（switch）indicator light

Back panel I/O

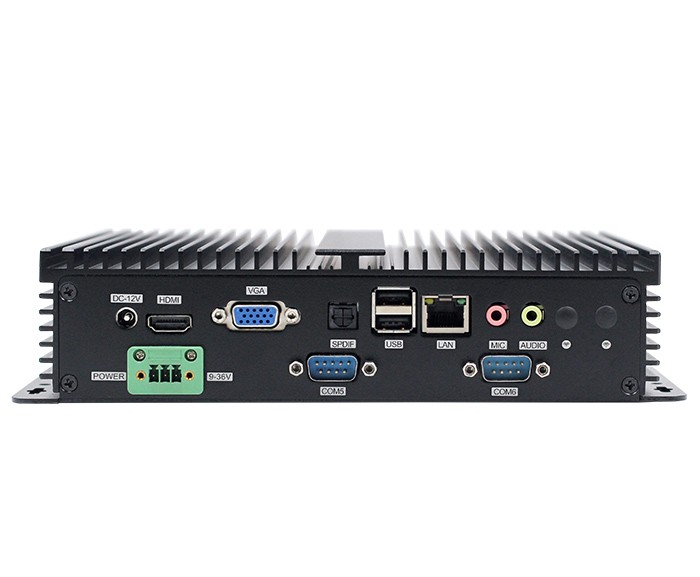

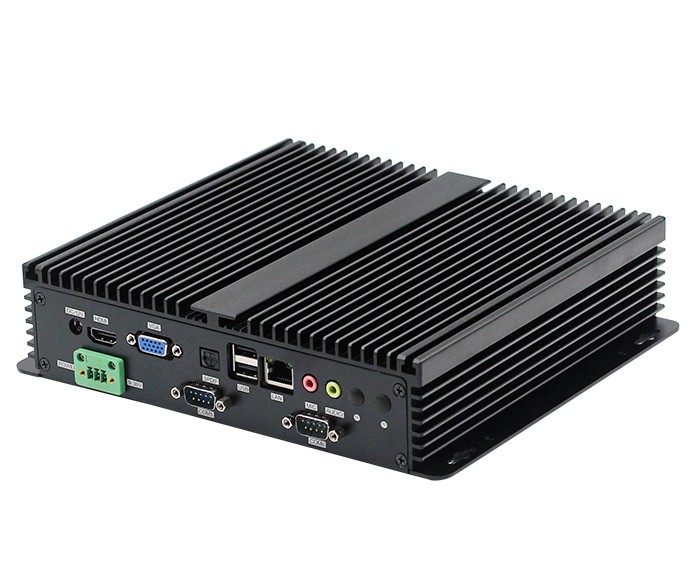

1*VGA 1*HDMI 4*USB3.0  1*LAN 1*line out 1*mic in 2*COM(RS232) 1*DC 1*Phoenix Terminals 3PIN power interface

Standard Accessories

1*12V 5Apower adapter 1*WIFI antenna （optional））

Package
Q-BOX-M(TOP77)
文件格式:
文件大小:
Update date: 2020 - 10 - 20
Download now
