Product Center
Embedded industrial pc

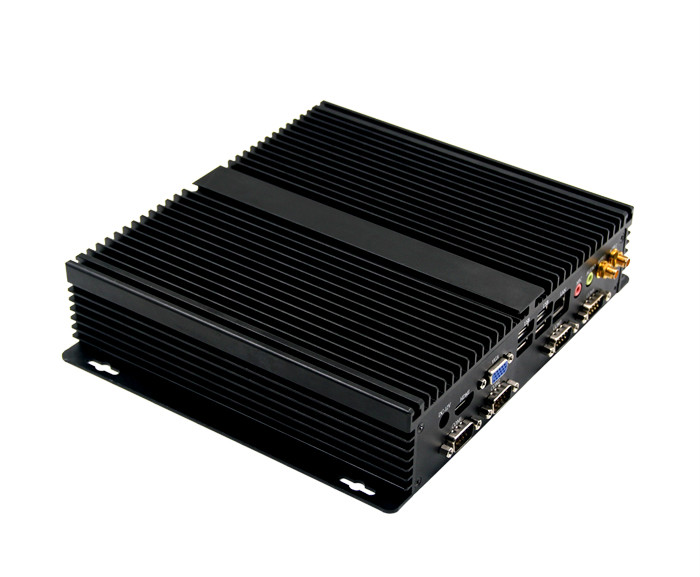

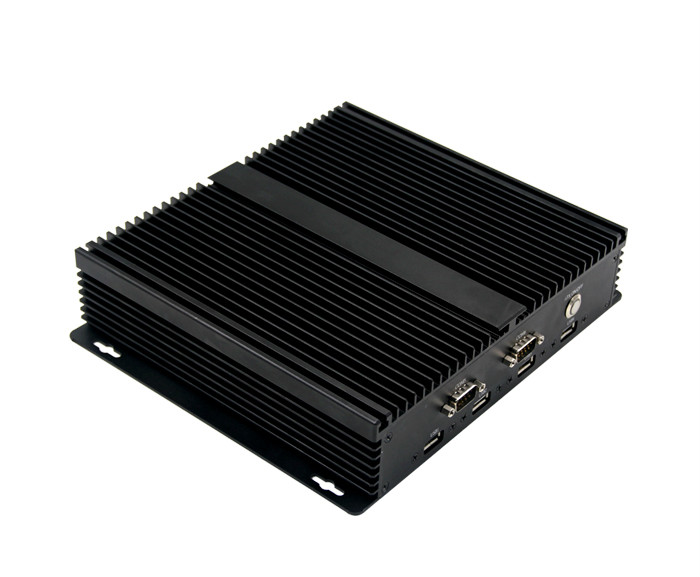

Q-BOX-M

项目介绍:

◆ Onboard BGA1023 CPU and HM77/HM76 Chipset

◆ Onboard 2GB/4GB DDR3L RAM

◆ Onboard Intel HD Graphics core

◆ Onboard VGA,HDMI,dual channel 24bit LVDS

◆ Onboard dual channel amplifier,support single channel 6W/8Ω Speaker

◆ Support power-on automatic startup function, jumper selection

◆ 12V 5A power supply

◆ Measure: 154.8mm x 117.4 mm
事宜人群:

Model No.

QBOX-M

Measure

215*210*55mm

Processor

Intel Mobile 2nd、3rd Core CPU（BGA1023），i3-3227（1.7G)\i5-3337(1.7G）\i7-3667(1.7G)

Chip

HM77/HM76

RAM

Onboard 2GB/4GB DDR3 RAM,Max.Expanded 8Gb

Expansion slot

1 DDR3 SODIMM 204 Socket

Network

Onboard RTL8111E 1000M LAN

Audio

Onboard HDA ALC662

Storage

1*MINISATA;4*SATA3.0

Chassis Color

Black

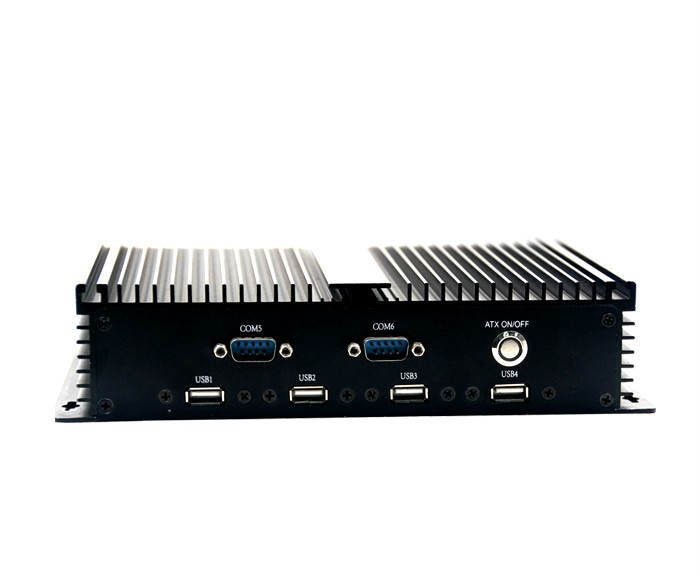

Front panel I/O

POW-ON/OFF（switch）、2*COM、4*USB

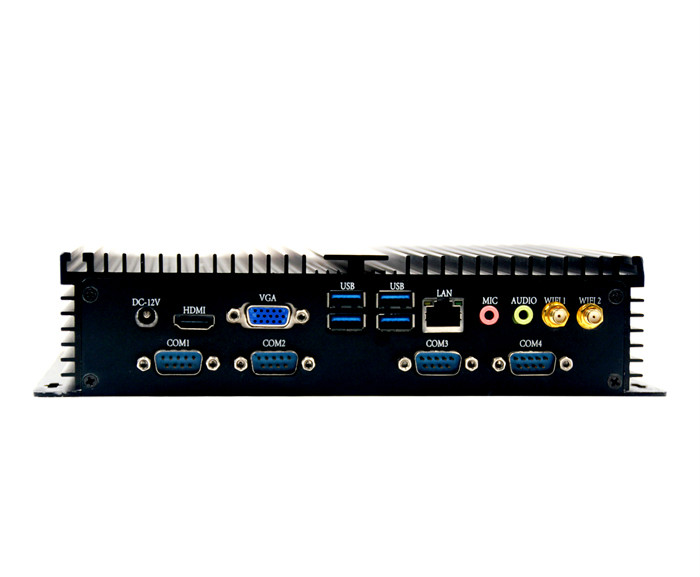

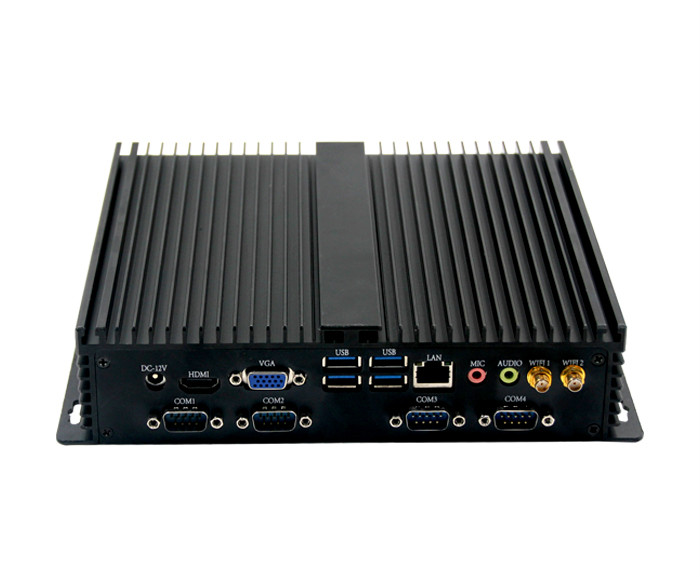

Back panel I/O

4*COM(COM3 for RS422/485)、4*USB、1*LAN、1*MIC、1*AUDIO

POW-LED、HDD-LED、DC-12V、1*VGA、1*HDMI

Standard Accessories

1*12V 5A power adapter 1*WIFI antenna（optional）

Package

Outer carton size:27.5*27*13cm G.W.:1.35KG N.W.:1.05KG
q-box - m_EN
文件格式:
文件大小:
Update date: 2017 - 04 - 22
Download now
