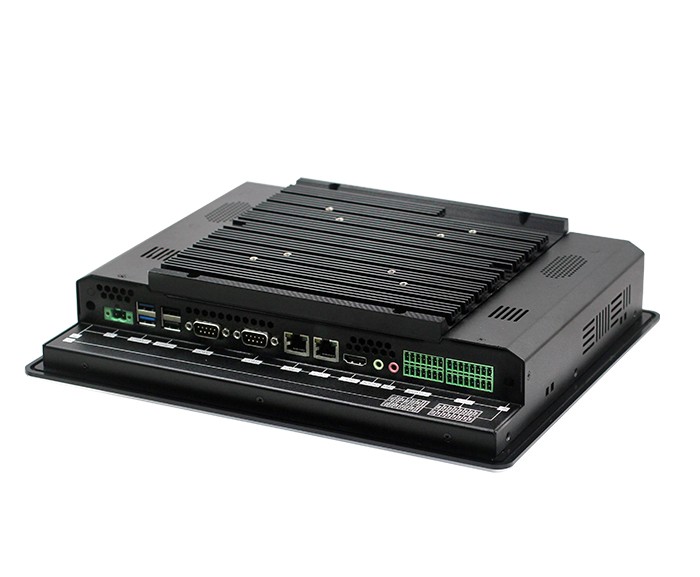

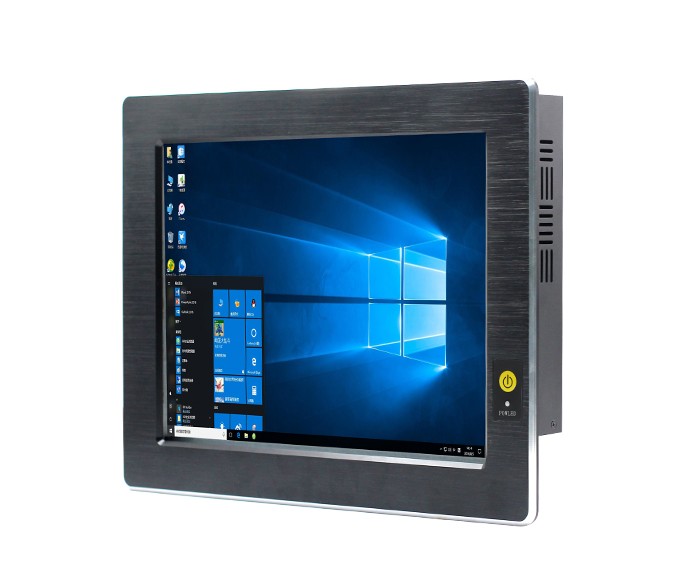

12 inch Industrial Panel PC

PPC-12A

项目介绍:

◆ Integrated Intel 5th Mobile Broadwell-U single chipset CPU；

◆12inch TFT LED display and 4 wires resistive Touch panel；

◆ Front panel protection Rating: IP65；

◆ Support SATA and M-sata storage；

◆ Support wireless 3G/WIFI Internet access；

◆ 2*RS422/485 is DB9 interface 4 three-wire RS-232 (Phoenix terminal interface)；

◆ DC12V5A power supply (optional 9-36V wide voltage supply)；

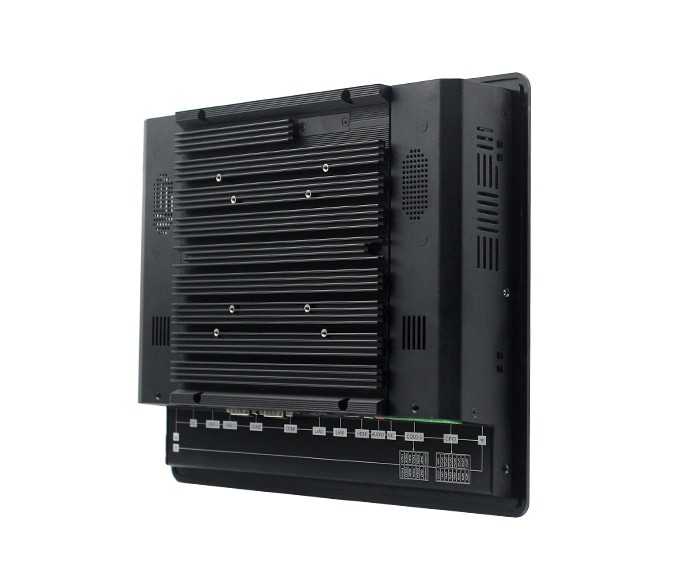

◆ Sealed and fanless design；
事宜人群:

Overview

The PPC-HU12A is a cost-effective 12-inch ultra-thin LCD industrial tablet PC with  Broadwell-U processor and a compact fanless embedded system for high performance computing. With High durability design, front panel protection grade IP65, strong aluminum alloy casing, 4-wire resistive touch screen, support 6 serial ports, 2 USB ports and 2 Gigabit Ethernet ports to meet various industrial applications.







Processor

CPU

Intel® Core™5th Broadwell-U Soc i3/i5/i7 processor

Memory

Integrated 2GB\4GB DDR3 1066/1333/1600MHz,1 slot can be added, up to be 12GB

storage

Onboard SSD16/32/64/128G（optional），SATA and MSATA，HDD and SSD（optional）

Internet (LAN)

2*Intel I211AT Gigabit Lan Port

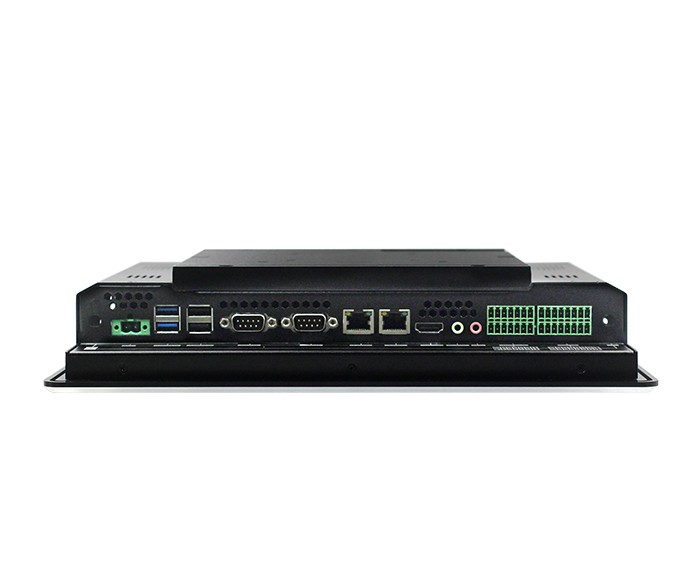

I/O Port

2*RS422/485/232 is DB9 Interface 4 three-wire RS-232 (Phoenix terminal interface),

2*USB2.0,2*USB3.0，

1*14BIT GPIO Port，

1*LINE OUT 1*MIC，

2*Wifi antenna  Port，

1*power switch button，

1*HDMI Max resolution support 3200*2000@60HZ

Expansion bus

1*full size Mini-PCIE socket

Watch -dog timer

0-255 second, Sample code optional

Physical characteristics

size

316.6*253.6*62.5mm

weight

2.75Kg

OS Support

Operate System

Support Windows 7/Windows8/Windows8.1/Windows10/Linux

Power type support

input Voltage

DC12V5A power supply (optional 9-36V wide voltage supply)

consumption

35W





LCD display

Display type

12inch  TFT LED

Max resolution

1024*768

View

80 (left), 80 (right), 70 (UP), 70 (Down)

Lumens (cd/m²))

350cd/m²

Contrast

400:1

Backlight Life

30,000 hrs (Min.)



TOUCH PANEL

TYPE

4 Wires Resistive touch panel

Light Transmittance

≥85%

Controller Interface

USB Port

Durability(Touch Times)

>3500 million times





ENVIRONMENT

Working Temperature

-20℃ ~ +60℃

Storage Temperature

-40℃ ~ +85℃

Relative humidity

0% ~ 90%Relative humidity, none condensation

EMC

CE, FCC Class B, BSMI

CERTIFICATE

CB, CCC, BSMI, UL

Front panel protection

Front panel IP65
PPC-12A
