Thin Client

U-BOX-M3 (R100)

项目介绍:

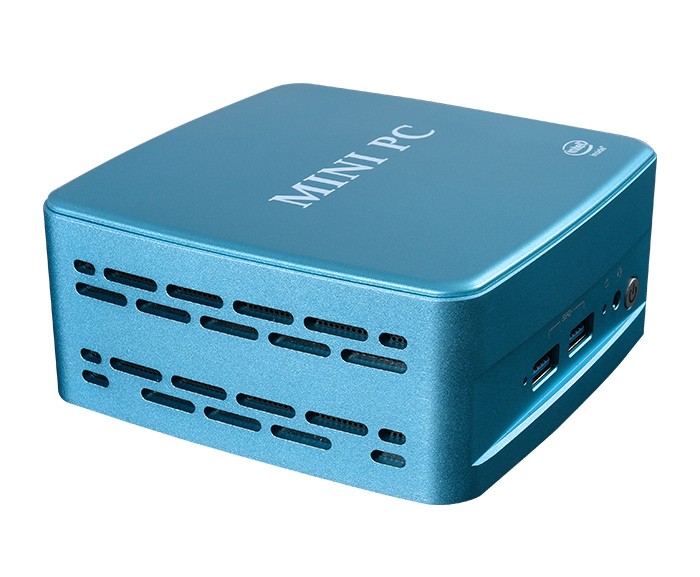

◆ Metal body, surface oxidation and CNC precision carving, copper fan radiator

◆ Support for Intel Core 12th/13th generation - U/- P series processors

◆ Dual channel DDR5 memory expansion, with a maximum expansion of 64GB

◆ HDMI2.0/Type-C display

◆ Intel 2.5G network, single and dual network options; Scalable WIFI with built-in antenna

◆ M.2 2280 SSD;

◆ DC 12-19V, above 120W

◆ Size: 115x115x54mm
事宜人群:

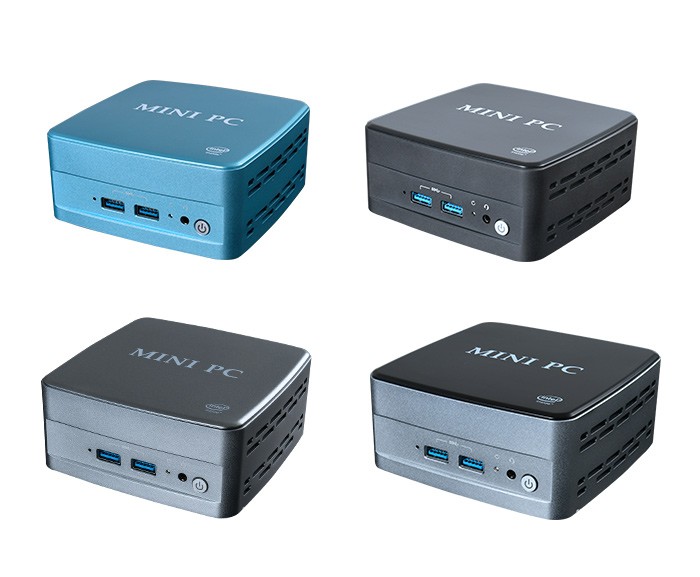

Material quality

Metal body

Processor system

Onboard Intel Core 12th/13th generation - U/- P series processors

EFI BIOS

Memory

2*DDR5 SO-DIMM，Up to 64GB

Storage

1 * M.2 M-Key 2280 (NVMe PCIe 4.0 x4 default/SATA 3.0 protocol)

Display

2*HDMI2.0，supports 4096x2160@60Hz

2 * Type-C interface, supporting DP Gen27680X4320@60HZ and USB3.2

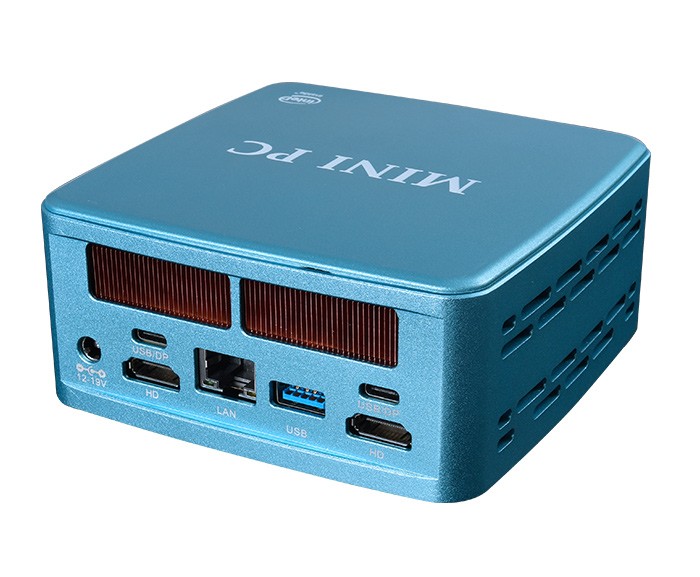

Board edge I/O interface

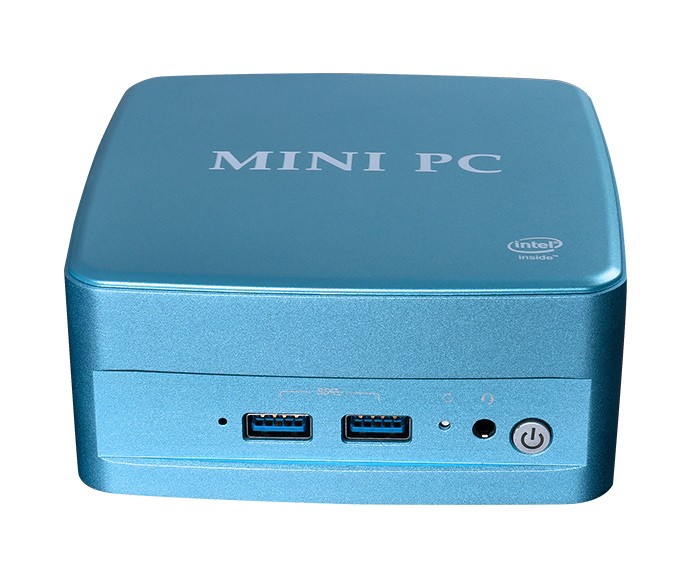

Power on button, two in one audio hole, reset button, 2 * USB3.2 Gen2

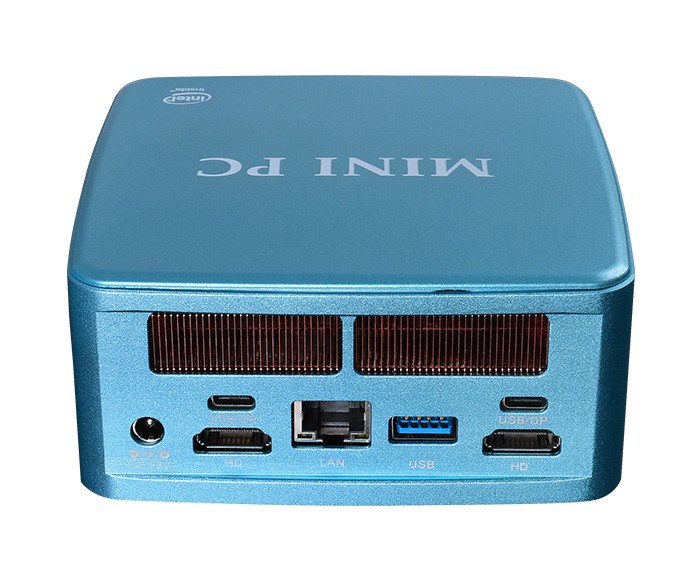

DC JACK, 2 * HDMI, 2 * Type-C

Single and dual network options: 1 * USB3.2 on the rear I/O for single network; In case of dual networks, the rear I/O is less 1 * USB3.2

Expansion interface/function

External TPM2.0 is optional, but not available by default. The default is CPU built-in TPM2.0

1*M.2 E-Key（PCIe+USB2.protocol，WIFI/BT module），built-in antennas

1 * 4Pin PWM CPU FAN

Source

DC 12-19V, above 120W

Work environment

Working temperature: -20 ℃~+60 ℃; Operating humidity: 5%~90%

Storage temperature: -40 ℃~+85 ℃; Storage humidity: 5%~90%

Operating system support

Windows10, Windows11, Linux

Size

114x114x54 mm

Net weight

About 120g without radiator, about 220g with radiator
U-BOX-M3_R100 datasheet
文件格式:
文件大小:
Update date: 2023 - 09 - 19
Download now
