Processor System | Onboard Intel Core 12/13th Generation Alder Lake-U/-P Raptor Lake-U/-P Series Processors |
EFI BIOS |
TPM2.0 | Default CPU Built-In TPM2.0, External TPM 2.0 For Option |
Memory | 1*DDR5 SO-DIMM, Up To 32GB; Onboard Memory For Option, Up To 16GB, Totally UP to 48GB |
Storage | 1*M.2 M-Key 2280, Default Nvme Pcie 3.0 X4 Protocol, SATA 3.0 Protocol for Option |
1*2.5inch HDD; 1*SATA3.0, 2Pin 5V |
Display | 1*HDMI 2.0 Interface, Support 4096x2160@60Hz |
1*Mini DP, Support 4096x2160@60Hz |
1*Type-C, Support Double-Sided USB 3.2 And DP 4K@60Hz |
Supports Synchronous Or Asynchronous Display |

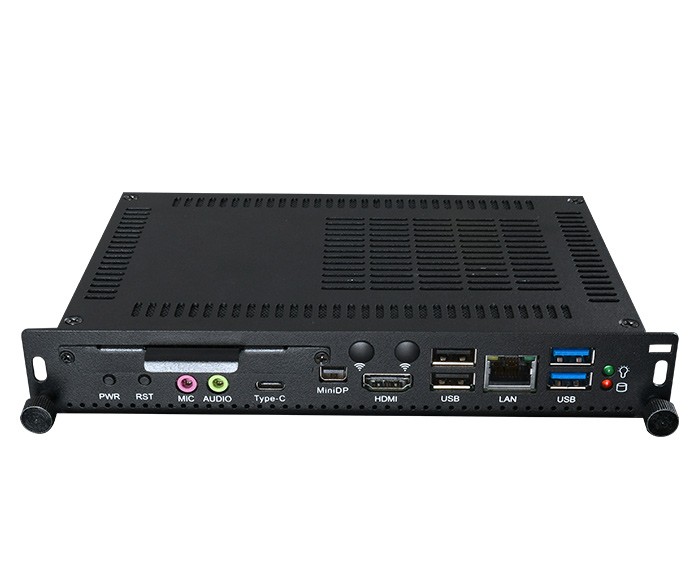

Board Side I/O Interface | 1*Mini DP, 1*HDMI2.0, 2*USB3.0, 2*USB2.0 |
1*LAN (RTL8111 Network, Intel I219 For Option) |
1*Power Indicator, 1*Hard Disk Indicator, 1*Switch Button, 1*Reset Button (One-Key Restore For Option) |
1*Type-C, 1*Mic-In, 1*Line-Out, 1*DC JACK Power Interface |
Extend Interface/Function | 1*M.2 E-Key (Pcie 3.0 + USB2.0 Protocol, Support WIFI/BT Module) |
1*M.2 B-Key (USB2.0 + USB3.0 Protocol, Support 4G/5G Module) |
1 Set Of 8-Bit GPIO Headers, 2x5Pin, Pitch 2.0mm |
1 Set Of RS232 Pin Header, 2x5Pin, Pitch 2.0mm |
1*4Pin CPU Intelligent Temperature Control FAN, 1 X 4Pin PWM SYS FAN |
Power Supply | DC 12-19V, 120W above |

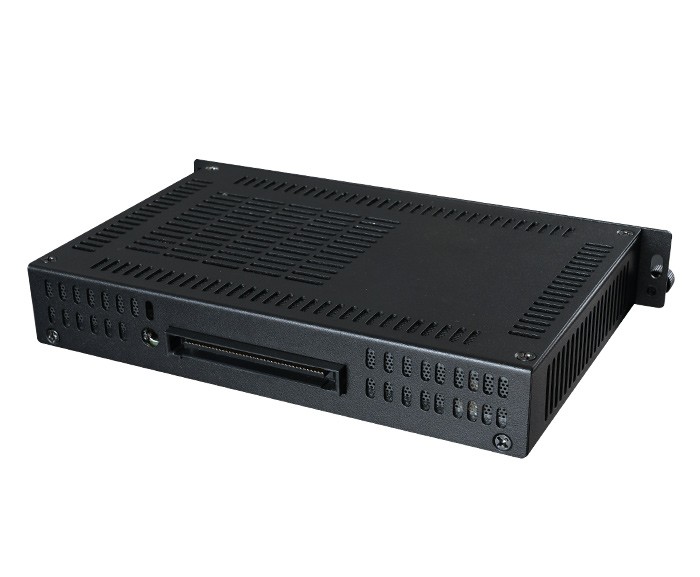

JAE 80Pin Interface Extension | HDMI 2.0/DP1.4 Output, Automatic Detection and Identification Switching |
2 X USB2.0, 1 X USB3.0, 1 X TTL |
Operating System | Windows10, Windows11, Linux |
Color | Black |
Size | 180x119x30 Mm |
Weight | Net Weight 750g, Gross Weight 800g With Package |
