Product Center
Network Security Motherboard

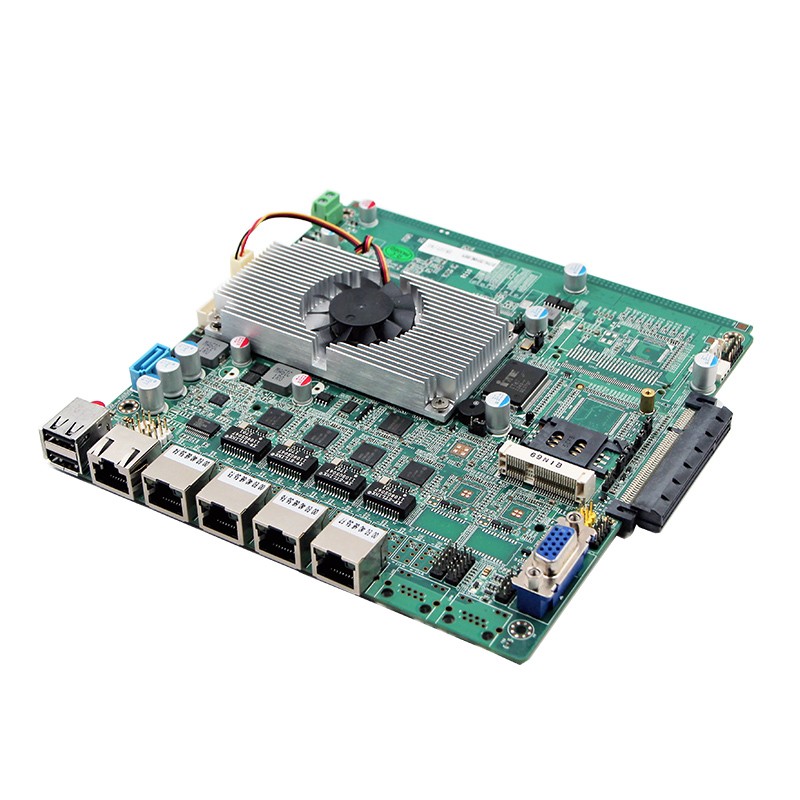

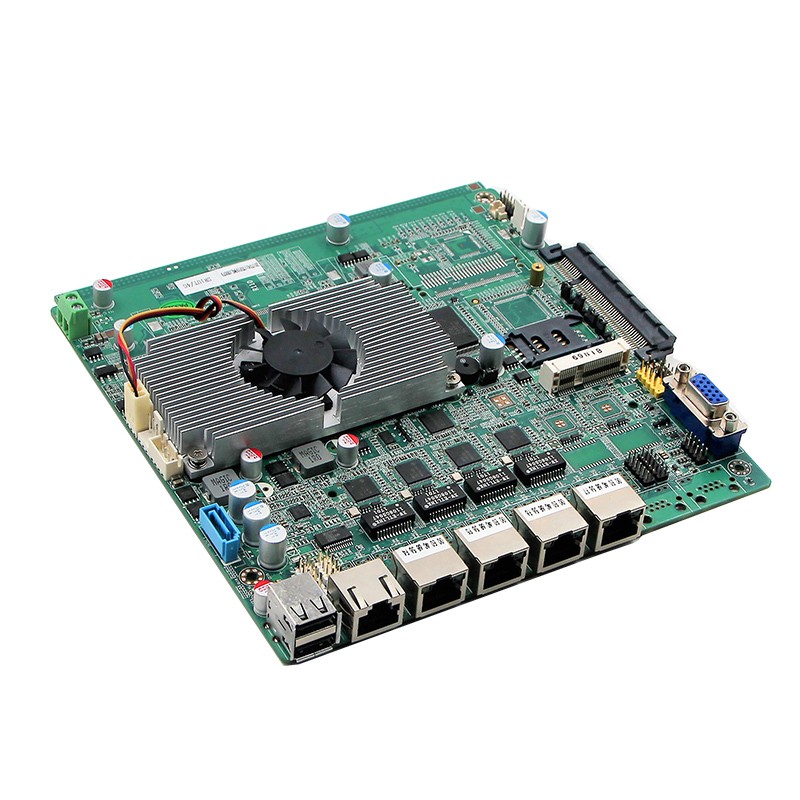

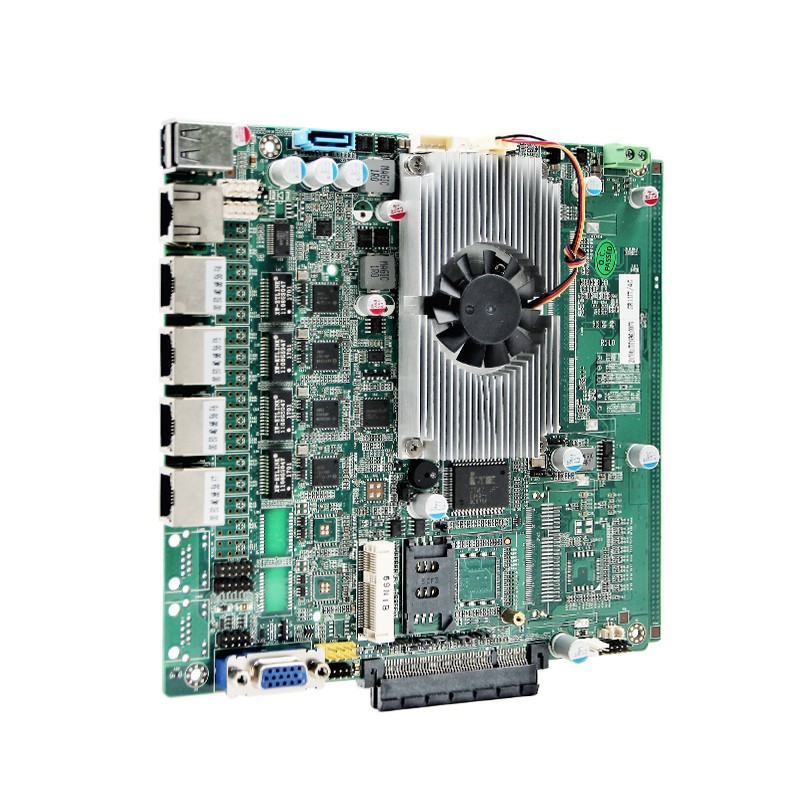

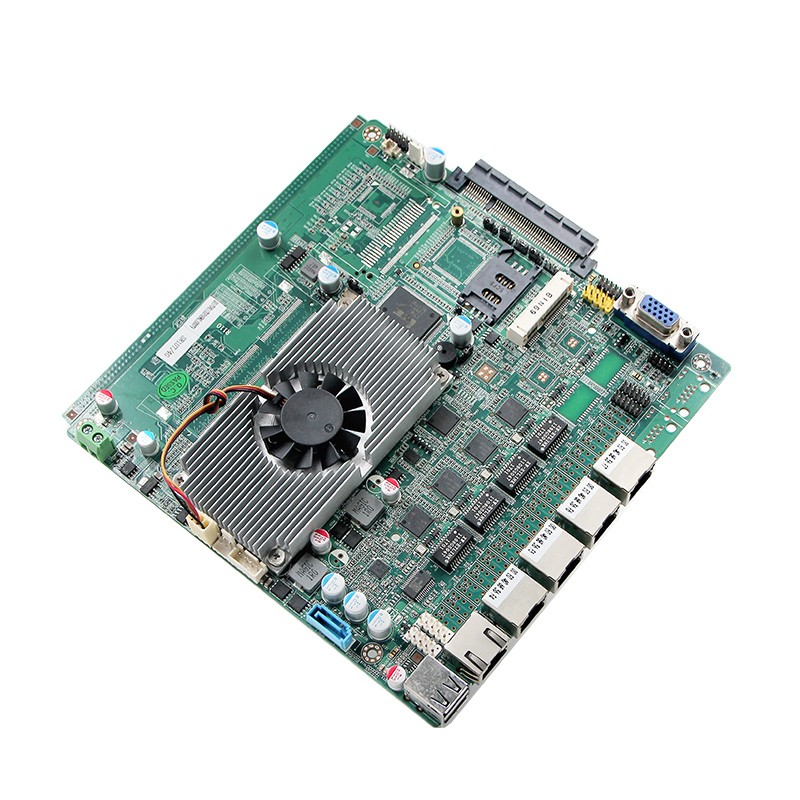

TOP19B4L

项目介绍:

◆ Onboard Intel Baytrail-D/I/M Processor；

◆ Onboard 2GB/4G DDR3；

◆ Onboard 4*Intel I211-AT Gigabit Ethernet LAN(LAN1 and LAN2，LAN3 and LAN4 support 2 Group Bypass Function）；

◆ Support RGBCRT pin header；

◆ 2*RS232，2*Pin header，1*RJ45 port（When RJ45 interface’s serial port can use,only have 1*serial port pin header )；

◆ Size：170 x 170 mm；
事宜人群:


Processor

CPU

Support Intel Baytrail-D/I/M processor

CPU Package

BGA

Chipset

Support Intel Baytrail Single chip

BIOS

EFI BIOS

Memory

Technology framework

Signal Channel DDR3 1066/1333/1600MHz

Capacity

Onboard 2GB\4GB DDR3

RAM socket

Can add 1*RAM socket，Max support 8GB Ram



Video

Graphic controller

Intel Graphics

VGA

VGA Resolution maximum 2048x1536

Rear Panel I/O

Ports

4*LAN,1*COM1,2*USB2.0

Network

Controller

4*Intel I211-AT Gigabit Ethernet LAN(LAN1 and LAN2，LAN3 and LAN4 support 2 Group Bypass Function）

Super  I/O

Controller

IT8728F

Hardware Monitor

Watchdog-Timer

0~255 timer

Cooler

Aluminum heat sink with fan(or fanless)



Input/Output interfaces

USB

4*USB2.0 pin header, Max. Current supported 5V/1A

Serial ports

2*RS232，2*pin header，1*RJ45 ports（When RJ45 interface’s serial port can use,only have 1*serial port pin header )

GPIO

6 bits, provide routines, freely define input/output, default output 1.8V level

Storage

SATA/M-SATA

1*SATAII connector,  Maximum transmission rate 3Gb/s

1*M-SATA  Scoket,support  SANDISK  Protocol,Maximum  transmission rate 3Gb/s.(Optional)

CF/Cfast

1*CF or Cfast storage interface（Optional）

Power Supply

Power Type

Single-input DC power supply，DC12V，+/-5%

Power consumption

15w



Working environment

Working temperature

-20℃ ~ +60℃

Storage temperature

-40℃ ~ +85℃

Working humidity

0% ~ 90%(non-condensing)

Storage humidity

0% ~ 90%(non-condensing)

Dimension

Size

170*170mm

Weight

0.5KG

Certifications


CE,ROSH,FCC
TOP19B4L Datasheet.EN
文件格式:
文件大小:
Update date: 2020 - 10 - 19
Download now
