u Onboard Intel 11th Tiger Lake-U series processor
u Onboard Ram，1*DDR4 SO-DIMM，Max support 64GB
u 2*lan port，TPM2.0 optional
u HDMI2.0/LVDS display output
u 2*MSKEXT expansion，12V/3A output
uDC 9-36V；Size：146x102mm
Processor
Onboard Intel 11th Tiger Lake-U series processor
EFI BIOS
Ram
Onboard Ram，1*DDR4 SO-DIMM，Max support 64GB
Storage
1*M.2 M-Key 2280 NVMe(PCIe 3.0 x4/SATA3.0) storage port
1*SATA3.0 port
Display
1*HDMI2.0 port， support 4096x2160@60HZ
LVDS/eDP

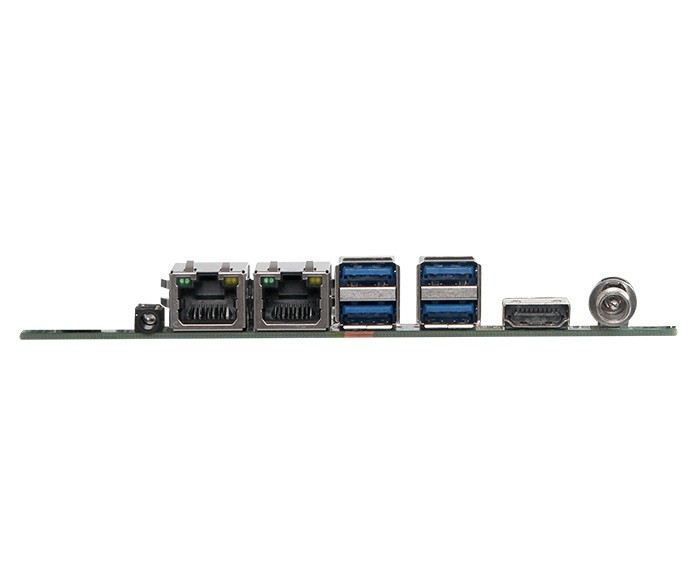

I/O port
1*DC JACK；1*HDMI2.0
4*USB3.0；2*LAN（Intel 2.5G）
1 2-in-1 audio jack
extensions
TPM2.0 optional, default none
1*M.2 E-Key（PCIe protocol, support WIFI module）
1*M.2 B-Key（USB2.0/USB3.0 protocol，Support 4G/5G module）；1*SIM slot
5*COM pin header
2 groups of 4 USB2.0 pin headers, 2x5Pin, spacing 2.0mm
2*MSKEXT expansion interface, expand 1 DP/1 USB3.0/1 USB2.0/1 PCIe 4X(x4)/1 MiniPCIe
1 set of power output interface, 12V, 3A
1 group of 8-bit GPIO pin headers,2x5Pin
1*4Pin SYS FAN
Power
DC 9-36V，90W
working environment
Working temperature:: -20℃ ~ +60℃；Working humidity: 5% ~ 90%
Storage temperature: -40℃ ~ +85℃；Storage humidity: 5% ~ 90%
OS system
Windows10，Windows11，Linux
Size
146x102mm
Weight
120g without heat sink，Fanless design
