NUC PC

U-BOX-M5

项目介绍:

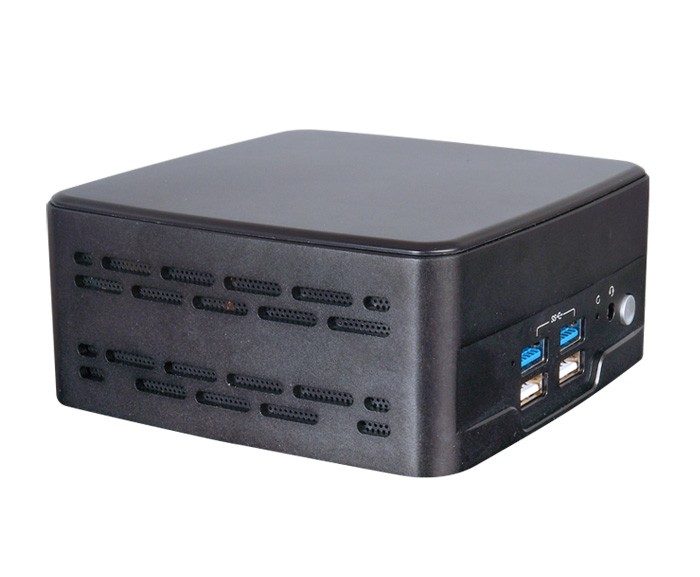

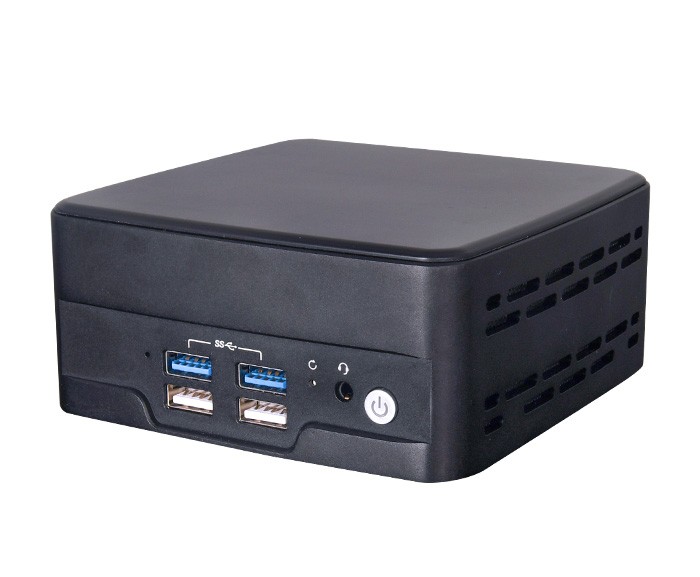

◆ Metal body, surface oxidation and CNC carving, copper fan radiator

◆ Support AMD RYZEN 6000/7000 series processors

◆ Dual-channel DDR5 memory expansion, up to 64GB

◆ HDMI2.0/Type-C（DP）

◆ RTL8125B network, dual network; expandable WIFI, built-in antenna

◆ M.2 2280 SSD；

◆ DC 12-19V, 90W and above

◆ Size:114.5x114.5x54.1mm
事宜人群:

Model

U-BOX-M5

Size

Machine size 114.5x114.5x54.1mm

Material

Metal body

Color

Available in black, iron gray

Processor

Onboard AMD RYZEN 6000/7000 series processor

Ram

2*DDR5 SO-DIMM，Max support64GB

Storage

1*M.2 M-Key 2280(PCIe3.0 x4 NVMe/SATA3.0 protocol,default NVME）

Network

RTL8125B network card, dual network

Wireless

Optional M.2 E-Key WIFI/BT, built-in antenna

TPM

External TPM2.0 optional

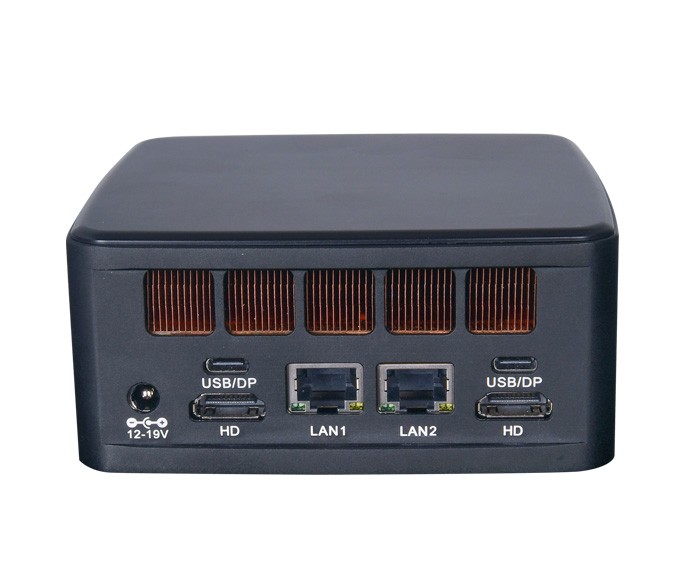

I/O interface

switch button;reset hole

RTL8125B network card, dual network

2*HDMI2.0 ports, 2 Type-C ports (USB3.2 + DP)

1*DC power port

1*2-in-1 audio hole

2*USB3.2 ports，2*USB2.0 ports

Power

DC 12-19V，90W and above

OS support

Windows10、Windows11、Linux

Package

Neutral white packing，181x152x115mm

Single weight

Net weight 1000g (excluding adapter)
U-BOX-M5 datasheet
文件格式:
文件大小:
Update date: 2024 - 10 - 30
Download now
