Product Center

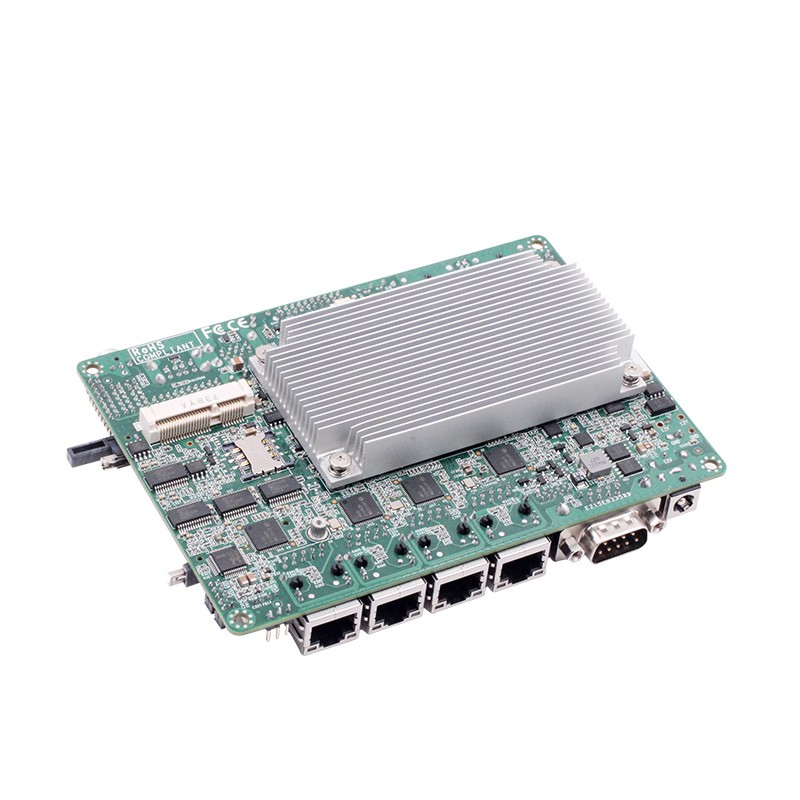

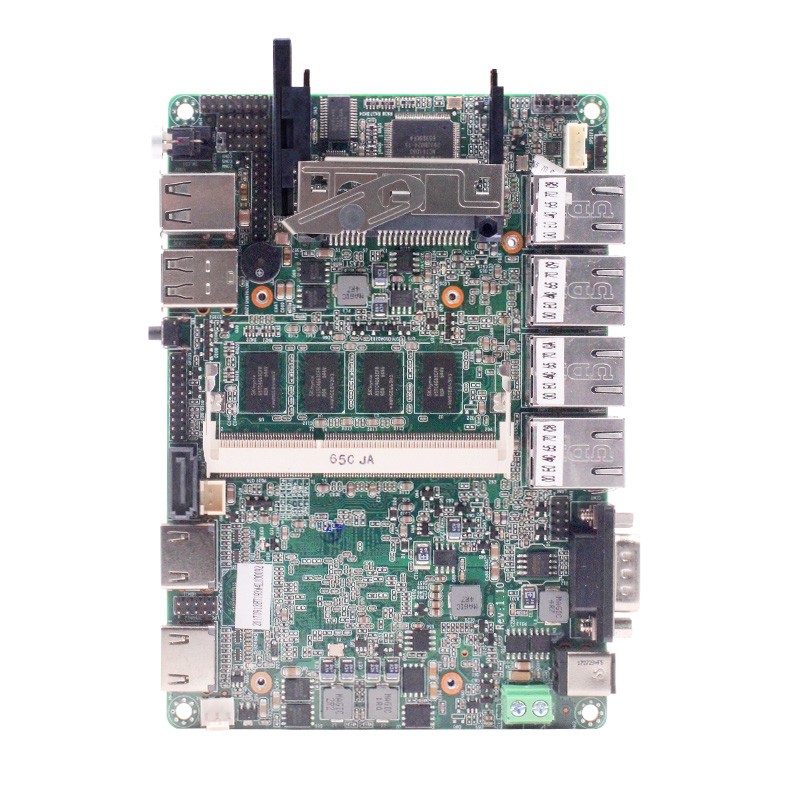

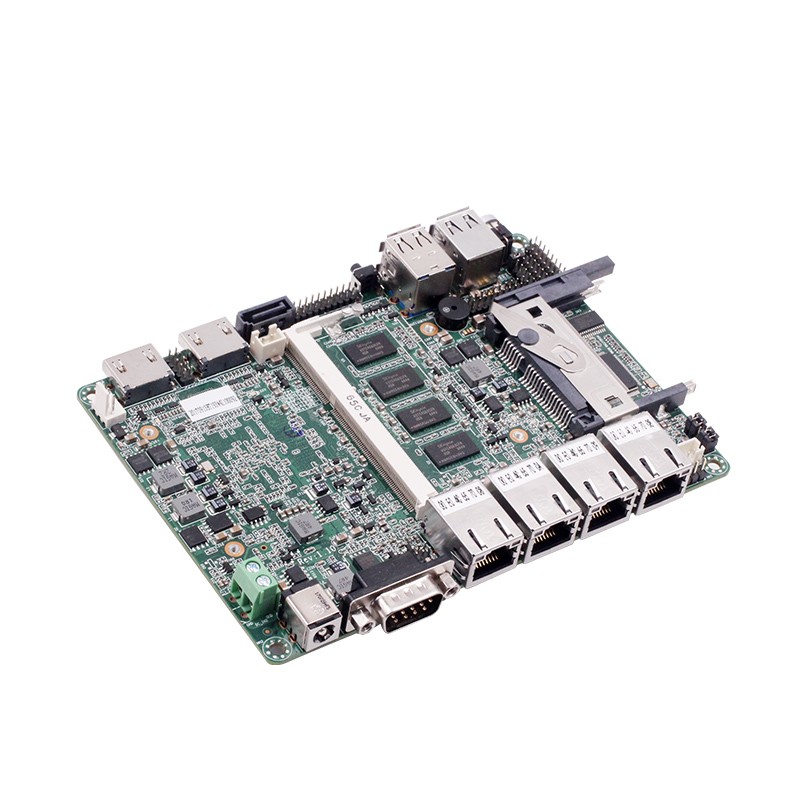

3.5inch motherboard

BT193A4L

项目介绍:

◆ Baytrail-D/I/M series processor；

◆ J1900\J1800\N2806\N2900\E3845；

◆ Onboard 2G\4G memory；

◆ 5*RS-232，1*RS-485/RS-422；

◆ 4*Intel I211 Gigabit Ethernet；

◆ Onboard 32/64/128G EMMC chipset（optional）；

◆ 1*Cfast storage interface；

◆ Single-input DC power supply，DC12V；

◆ Size: 145 x 102mm；
事宜人群:


Processor

CPU

Support Baytrail-I/D/M serial Processor (J1900 N2900 J1800 N2806 E3845)

CPU package

BGA

Chipset

Support Baytrail-I/D/M serial Processor

BIOS

EFI BIOS

Memory

Technology framework

Singel channel DDR3 1066/1333/1600MHz

Capacity

Onboard 2GB\4GB DDR3

Socket

Can add 1*RAM socket，Max support 8GB Ram



Video

Graphic controller

Intel HD Graphics

Dual LVDS

Support dual channel 24bits display,mac resolution :1920 x 1080

VGA

VGA Resolution maximum2048x1536(VGA port is pin header)

HDMI

2*HDMI Resolution maximum 1920x1080

Dual display

HDMI+HDMI,HDMI+VGA sync or asynchronous display

I/O panel

Ports

1*COM, 2*HDMI 1*USB3.0 3*USB2.0  4*LAN 1*Quick start button with indicator light ,1 *Restart button

Network

Controller

4*Intel I211AT high performance Gigabit Ethernet Port，RJ45 Port

Audio

Controller

Realtek HD ALC662 chipset,provide 6 channels output(line-in,line-out,Mic)

Super  I/O

Controller

NCT6106D

Hardware monitor

Watchdog & Timer

0~255 timer  (Watchdog code optional)

Cooler

Aluminum heat sink with fan(or fanless)



Input/Output Interface

USB

6*USB2.0,Max support +5V/1A

Serial ports

5*RS-232, 1*RS422/485,RS485 Support automatic flow control

GPIO

8bit,sample code, Free defination input or output ,3.3V@24mA

EXPANSION BUS

Mini-PCle

1*Mini-PCIe slot ,support USB equipment

Storage

SATA

1*SATAII connector,  Maximum transmission rate 3Gb/s

Cfast

1*Cfast storage interface

Power Supply

Power Type

Single-input DC power supply，DC12V，+/-5%

Power consumption

20W



Working environment

Working temperature

-20℃ ~ +60℃

Storage temperature

-40℃ ~ +85℃

Working humidity

0% ~ 90%(non-condensing)

Storage humidity

0% ~ 90%(non-condensing)

Support System


Windows7 Windows8.1 Windows10 Linux When using EMMC to install the system J1900, J1800 CPU only supports Windows8.1 Windows10, E3845 CPU supports Windows8.1 Windows10 Linux

Dimension

Size

145 x 102 mm

Weight

0.5KG

Certifications


CE,ROSH,FCC
BT193A4L datasheet 2017
文件格式:
文件大小:
Update date: 2017 - 04 - 22
Download now
