Product Center

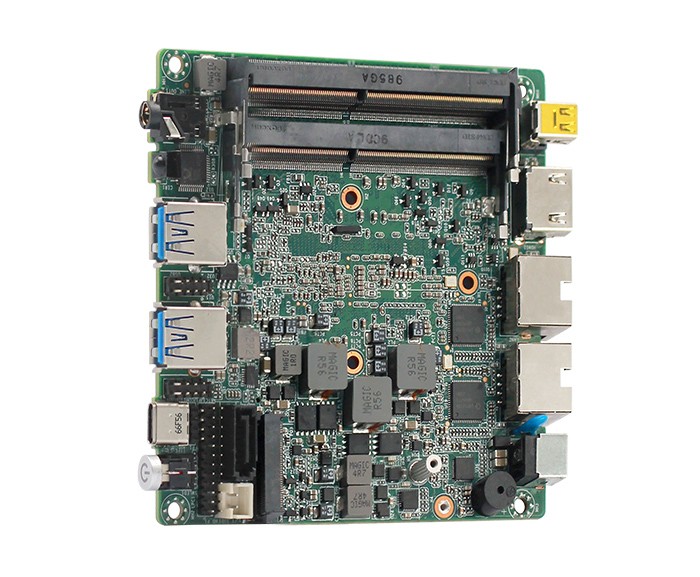

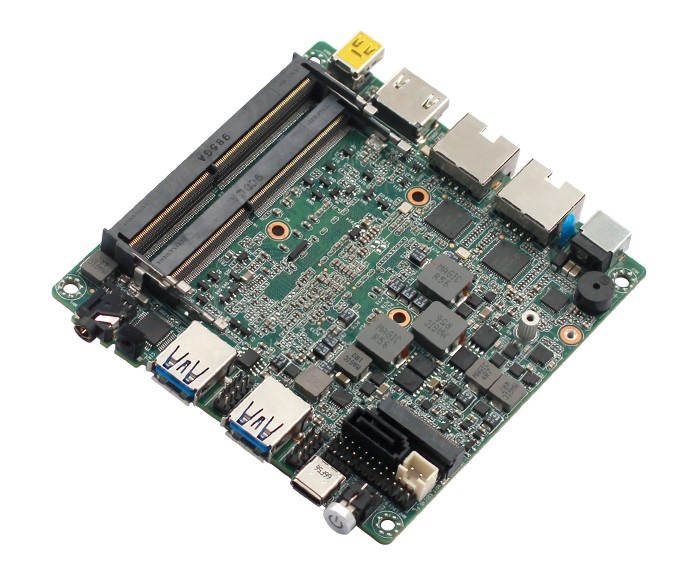

NUC motherboard

WK410CA

项目介绍:

◆ Onboard Comet Lake-U series processor

◆ 2*DDR4 SODIMM，max support 64GB

◆ 1*HDMI2.0，1*Mini DP1.4（suooirt DP++）

◆ 2*USB3.1，1*Type-C（USB3.1 GEN2）

◆ 2*I211/I210 Gigabit Ethernet port

◆ support PCIE X2 NVME  or SATA signal 2242 M2 hard disk with SATA signal (choose one)

◆ DC12-19V(When using 12V, the current needs to reach 7A or above; when using 19V power supply, the current needs to reach 4.74A or above)

 ◆ Size：100x100mm
事宜人群:

Processor

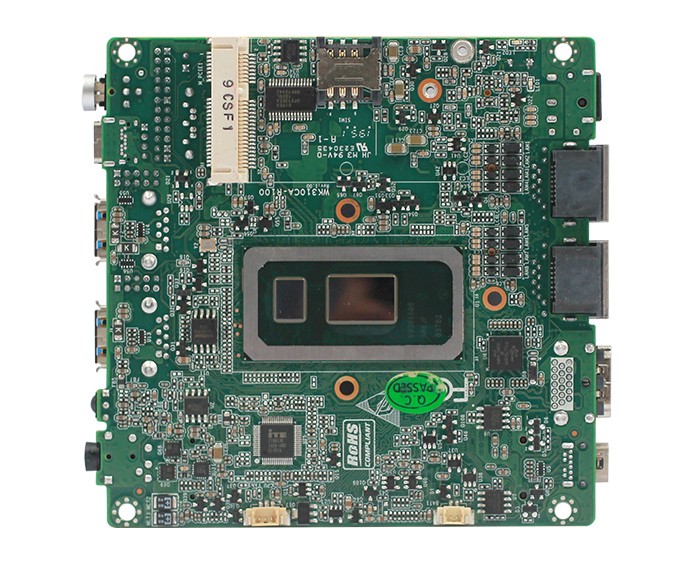

Onboard Intel® Core™10th Comet Lake-U series processor

EFI BIOS

Ram

2*DDR4 2400MHz SODIMM Ram socket，Max support 64GB

Display

Mini DP，4096x2304 60Hz（Only support DP++）

1*HDMI2.0，4096x2304 60HZ，Synchronous or asynchronous display

I/O Interface

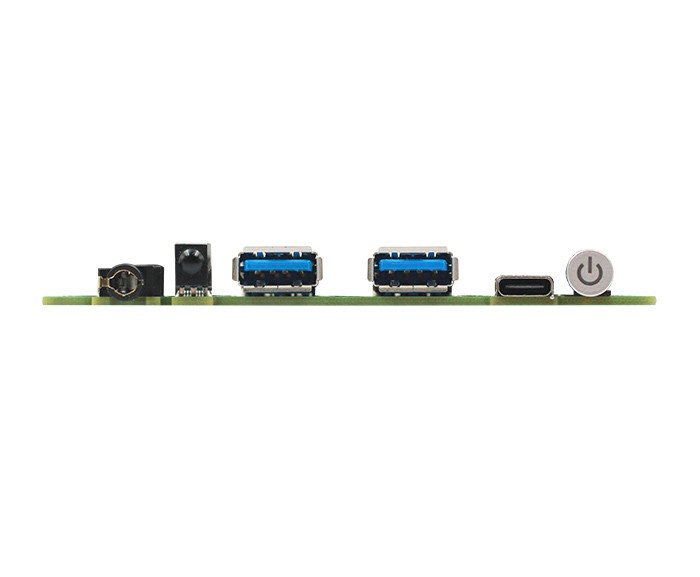

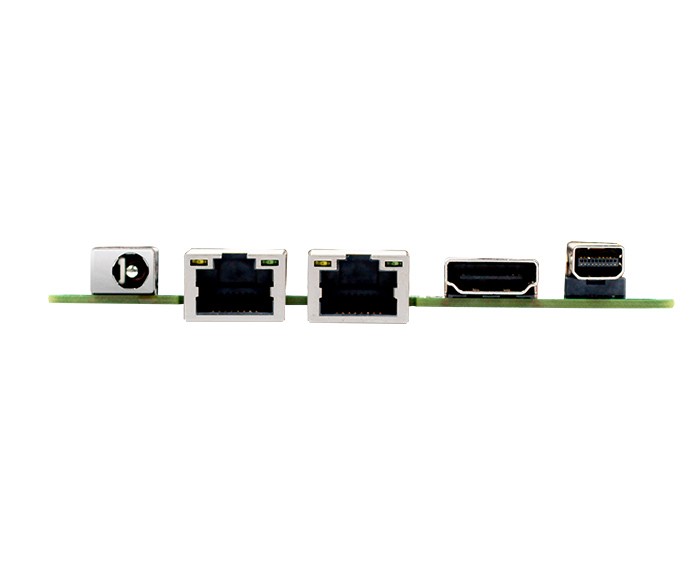

1*DC，2*LAN，1*HDMI2.0，1*MINI DP，1*AUDIO，2*USB3.1，1*SWLED，1*Type-C，1*CIR（Infrared interface），

Expansion slot

2*I211/I210 Gigabit LAN, RJ45 interface

Audio, Realtek ALC662 audio decoding (left and right channels + microphone)

SUPER I/O：ITE8613E

0-255 seconds watchdog, provide watchdog routine

Aluminum fan radiator

4 USB2.0 (2 2x5 pins), 2 USB3.1 GEN2, when using Celeron Pentium processor, the speed can only reach GEN1, 1 TYPE-C (only support data transfer), USB3.1 GEN2

1 RS-232 (can be changed to TTL level)

1x Mini-PCIe slot, supports PCIe and USB devices, with micro SIM card slot

1 LPC pin expansion interface

Storage

1 SATA3.0, maximum transfer rate 6Gb/s

2242 M.2 hard drive with PCIE x2 NVME or SATA signal (choose one)

Power supply

DC12-19V (when using 12V power supply, the current needs to reach 7A or above; when using 19V power supply, the current must reach 4.74A or above)

Working Environment

Working temperature: -20℃ ~ +60℃; Working humidity: 0% ~ 90% relative humidity, no condensation

Storage temperature: -40℃ ~ +85℃; Storage humidity: 0% ~ 90% relative humidity, no condensation

System

WIN10，Linux

Size

100x100mm

Weight

150g(without heatink)
WK410CA(R100) datasheet
文件格式:
文件大小:
Update date: 2023 - 03 - 09
Download now
