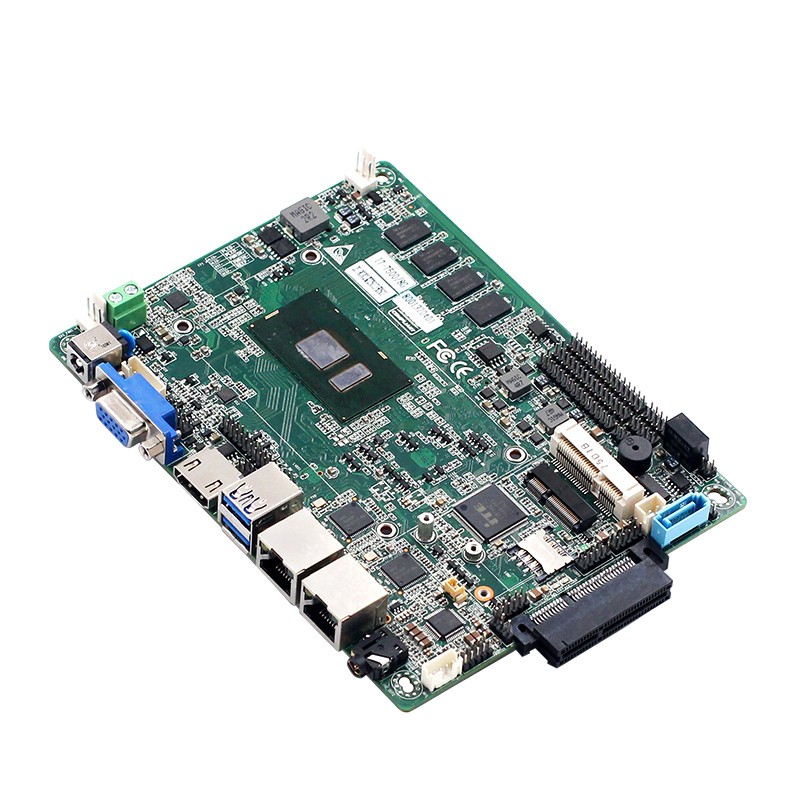

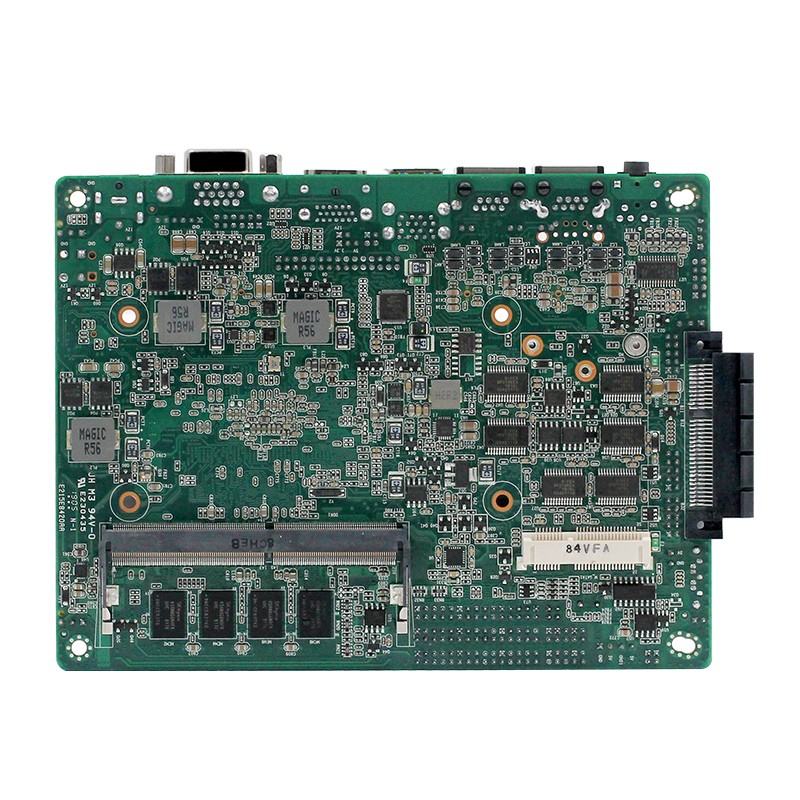

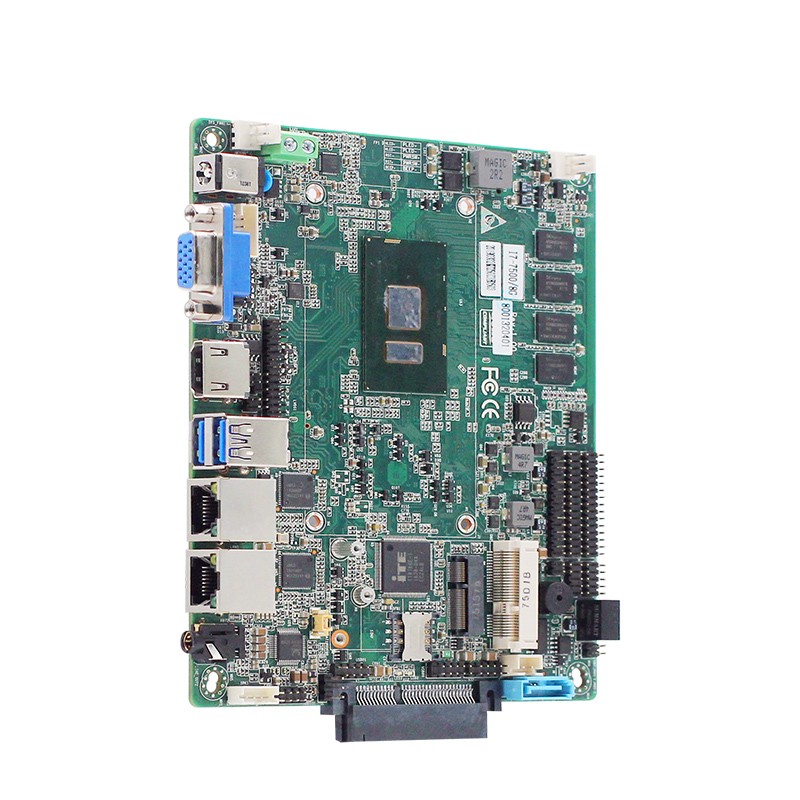

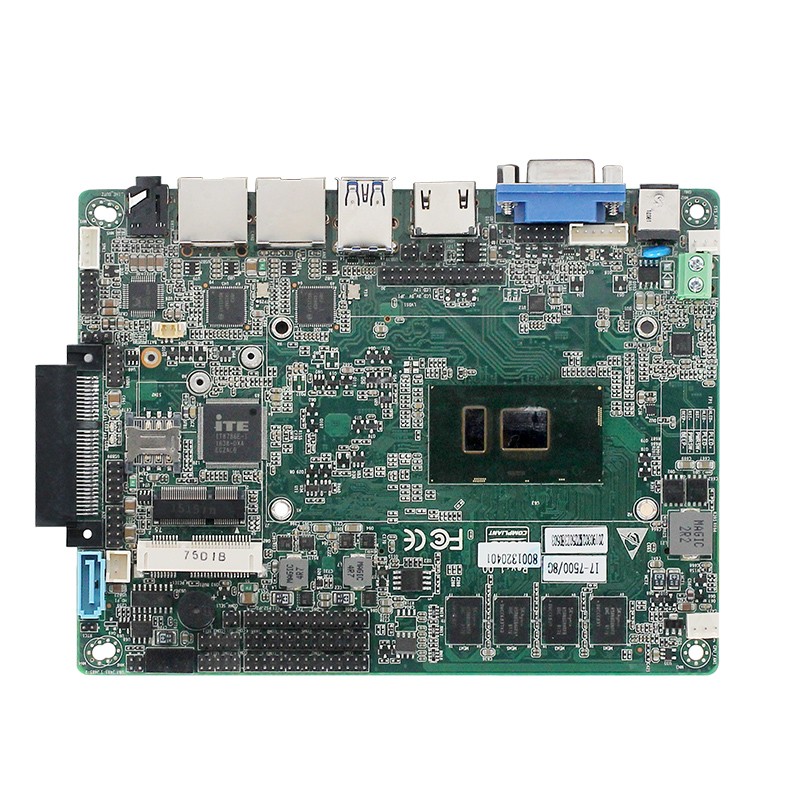

Z-3.5 motherboard

KU250Z3B

项目介绍:

◆ Integrated Intel  7th generation Skylake-U single-chipset CPU；

◆ Integrated 2GB/4GB/8GB DDR4 memory；

◆ supply 1*VGA,1*HDMI 1.4（support 4K Display output）；

◆ 1*LVDS(dual channel 24 bit）and EDP1.3，4Lanes（optional）

◆ Onboard Dual channel amplifier,support 6W/8Ω speaker each channel

◆ Supported power-on rebooting function

◆ 1*PCIE X4

◆ DC 12V power supply；

◆ Measure:  154.8 x 117.4 mm；
事宜人群:

Processor

CPU

Intel® Core™ 7th generation Kaby lake-U Soc i3/i5/i7 processor

CPU Package

BGA

Chipset

Intel® Kaby lake-U SOC

BIOS

EFI BIOS

RAM

Technology framework

Dual Channel DDR4 2133Mhz；

Capacity

Integrated 2GB/4GB/8G DDR4

Socket

1 slot can be added，maximum up to 16GB

Video

Graphic controller

Intel HD Graphics 520 (I3-6100U graphics card); graphics card model is related to the CPU

Dual LVDS and EDP

Support 24 bit output,LVD maximum resolution  1920 x 1200 EDP maximum resolution  4096*2304（optional）

VGA

VGA maximum resolution 2048x1536

HDMI

maximum resolution（HDMI1.4）4096*2304@30HZ support 4K display

Double display support

LVDS + VGA,LVDS+HDMI,HDMI+VGA Synchronous or asynchronous display

Three display

Support LVDS+VGA+HDMI Three-screen sync or asynchronous display

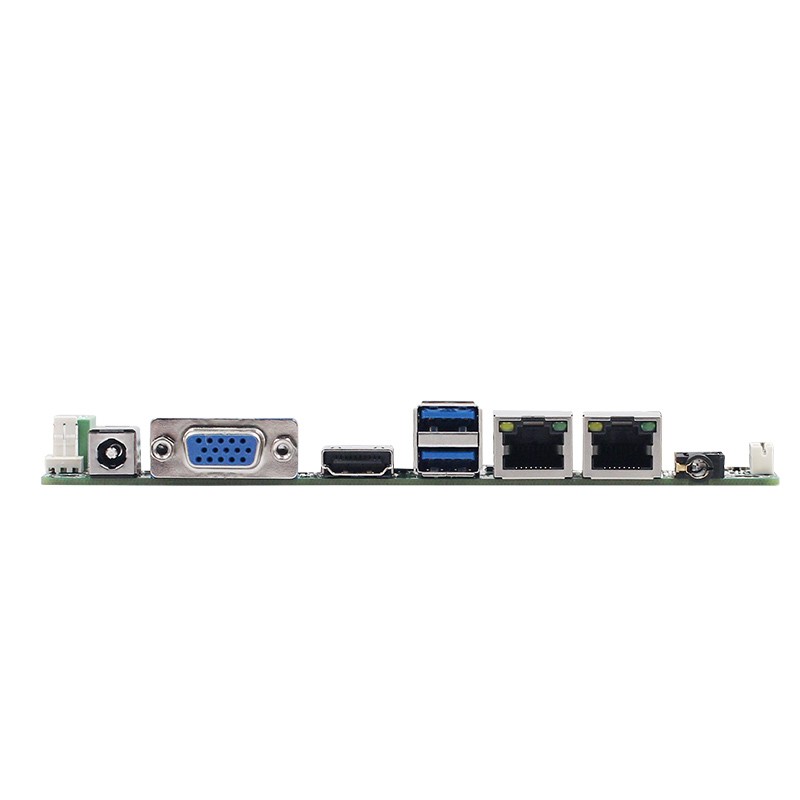

I/O panel

ports

1*VGA,1*HDMI,2*LAN,2*USB3.0 1*MIC-OUT/LINE-OUT 1*DC

Network

Controller

2* Intel I211AT（When the I/O interface is 4 USB, there is only 1 Intel I211AT NIC）

Audio

Controller

Realtek ALC662 HD AUDIO(Left and right channel + microphone)

Super I/O

Controller

ITE8786E

Hardware monitor

Watchdog & Timer

0~255 timer  (Watchdog code optional)

Cooler

Aluminum alloy heat sink with fan(Supports automatic and manual fan speed adjustment）

Input/Output Interface

USB

2*USB3.0 compatible USB2.0 / 1.1，6*USB2.0,Max. Current supported +5V/1.5A

Serial ports

COM1,2,4 can be selected as RS232 or RS485 by jumper cap and BIOS. COM3 can be selected as RS232 or RS422/RS485 through jump cap and BIOS, COM5, COM6 is RS232 (COM1 RS485 with optocoupler isolation)

PS/2

1*PS/2 pin header

GPIO

8-bit, provides routines, freely defined input/output, 3.3V@24mA level

Extended bus

Mini-PCle

1*miniPCIE socket ,supported PCIE and USB device

NGFF

1 *NGFF （KEY E）

Storage

SATA

1*SATAIII interface(Maximum transmission rate to 6gb/s)

M-SATA

1*M-SATA Socket,support SANDISK protocol(Maximum transmission rate to 6gb/s)

Power Supply

Power Type

DC 12V power supply



Work environment

Working temperature

-20℃ ~ +60℃

Storage temperature

-40℃ ~ +85℃

Working humidity

0% ~ 90%(non-condensing)

Storage humidity

0% ~ 90%(non-condensing)

System

System

Windows7 Windows10 Linux

Measure

Size

154.8 x 117.4 mm

Weight

0.5KG

Processor

CPU

CE,RoHS,FCC
KU250Z3B datasheet
文件格式:
文件大小:
Update date: 2024 - 10 - 28
Download now
