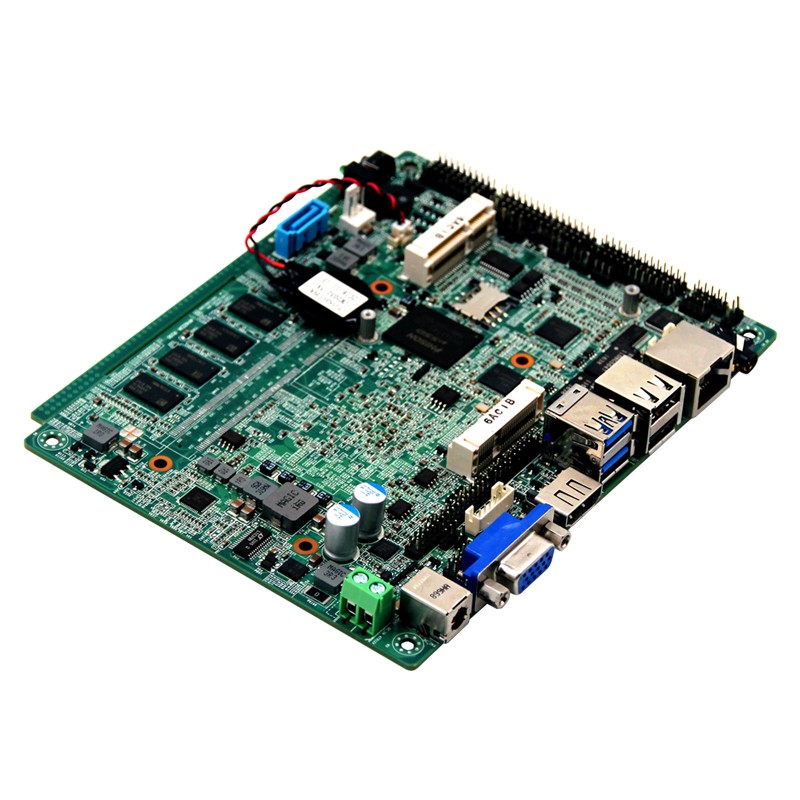

Z-3.5 motherboard

AP42Z3A

项目介绍:

◆ Apollo lake series processor;

◆ Onboard 2G\4G Memory;

◆ 5*RS-232，1*RS-485/RS-422;

◆ 24bit dual channel LVDS or EDP（Optional）;

◆ Onboard 32/64/128G SSD（Optional）;

◆ Support Touch screen（4wire 5wire 8wire）;

◆ Support 8-36V wide voltage;

◆ Size:154.8 x 117.4 mm;
事宜人群:


Processor

CPU

Apollo lake series processor

CPU Package

BGA

Chipset

Apollo lake Single Chip

BIOS

EFI BIOS

RAM

Technology framework

Single channel DDR3 1066/1333/1600/1866MHz

Capacity

Integrated 2GB\4GB DDR3

RAM Socket

1x RAM slot ,max. 8GB RAM(Optional)



Video

Graphic controller

Intel HD Graphics

Dual LVDS&EDP

LVDS Support dual channel 24bit LVDS,Resolution maximum:1920*1200, EDP Resolution maximum:4096*2160（LVDS&EDP Display alternatively）

VGA

VGA support Resolution maximum:2048x1536

HDMI

Support Resolution maximum:4096*2160

Double display support

VGA+HDMI VGA+LVDS LVDS+HDMI Synchronous or asynchronous display

Three Display support

LVDS+VGA+HDMI Synchronous or asynchronous display

I/O Panel

Ports

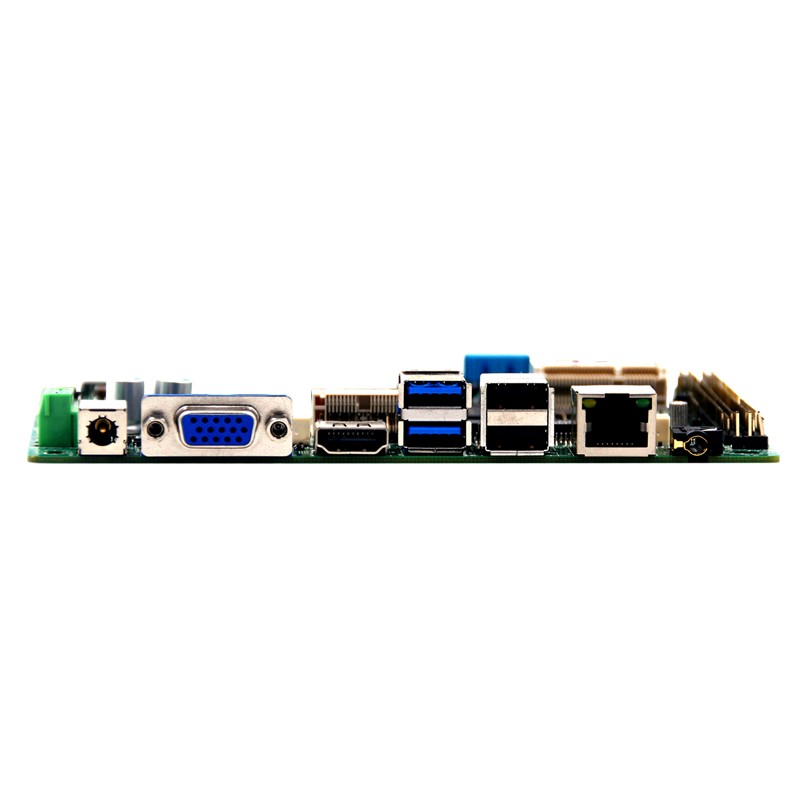

1*VGA 1*HDMI  2*USB3.0 1*RJ45 Lan, 1*LINE OUT 1*DC

Network

CONTROLLER

2*Intel I211AT Gigabit Ethernet LAN,RJ45 ports(Rear is 4*USB，is 1*LAN）

AUDIO

CONTROLLER

Realtek HD ALC662 Audio((line-in,line-out,Mic)

Super  I/O

CONTROLLER

IT8786E

HARDWARE MONITORING

Watchdog timer

0-255sec, sample code optional

Cooler

Aluminum+copper heat sink with Fan or Fanless



Input/Output Interface

USB

2*USB3.0 6*USB2.0, maximum support +5V/1A (when the touch screen and Mini-Pcie slot can both use USB protocol devices, USB2.0 is 4)

Serial ports

5*RS-232, 1*RS422/485 optional，RS485 supported automatic flow control

LPT

1*LPT pins

PS/2

1*PS/2 Pin Headers

Touch screen

Support Touch Panel（4wire 5wire 8wire,When the touch screen is available, the header JUSB2 has only 1 USB ）

GPIO

8bit,sample code, Free defination input or output ,3.3V@24mA

EXPANSION BUS

Mini-PCle

1*Mini-PCIe slot,Support PCIe and USB device(When USB protocol device is available, JUSB2 has only 1 USB)

STORAGE

SATA

1*SATAIII interface(Maximum transmission rate to 6gb/s)

M-SATA

1*M-SATA Socket,support SANDISK protocol(Maximum transmission rate to 6gb/s)

SSD

32/64/128G（Optional）

POWER SUPPLY

Power Type

Wide Voltage 8-36V

Power consumption

20W



WORKING ENVIRONMENT

Working temperature

-20℃ ~ +60℃

Storage temperature

-40℃ ~ +85℃

Working humidity

0% ~ 90%(non-condensing)

Storage humidity

0% ~ 90%(non-condensing)

MEASURE

Size

154.8 x 117.4 mm

Weight

0.5KG

CERTIFICATION


CE,ROSH,FCC
AP42Z3A Datasheet
